Please send RFQ , we will respond immediately.
| Part Number | P9147NRGI8 | P9167NRGI8 | P9147NRGI |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Half Bridge | Half Bridge | Half Bridge |
| Applications | General Purpose | General Purpose | General Purpose |
| Interface | 2-Wire | 2-Wire | 2-Wire |
| Load Type | Inductive | Inductive | Inductive |
| Technology | - | - | - |
| Rds On (Typ) | - | 35mOhm LS, 100mOhm HS | - |
| Current - Output / Channel | - | 3.6A | - |
| Current - Peak Output | 6A | 5.5A | 6A |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Load | 5.6V ~ 12.6V | 5.6V ~ 12.6V | 5.6V ~ 12.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) |
| Features | - | - | - |
| Fault Protection | - | Current Limiting, Over Temperature | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

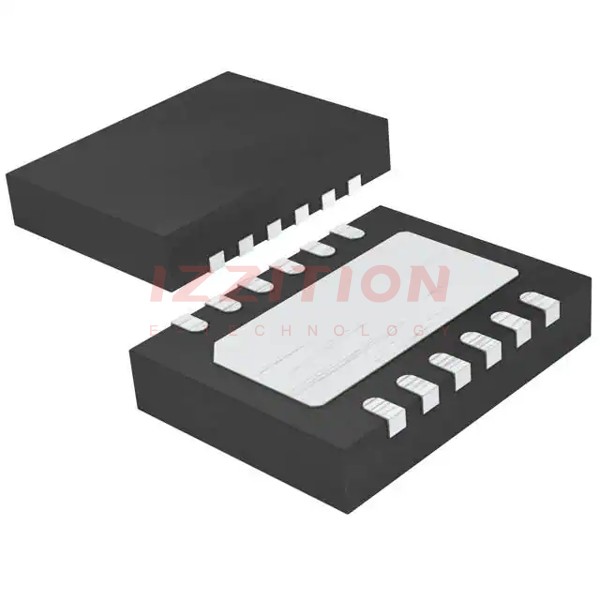

| Package / Case | 12-VFDFN Exposed Pad | 12-VFDFN Exposed Pad | 12-VFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x3) | 12-DFN (4x3) | 12-DFN (4x3) |
