NP75P03YDG-E1-AY
  • Share:

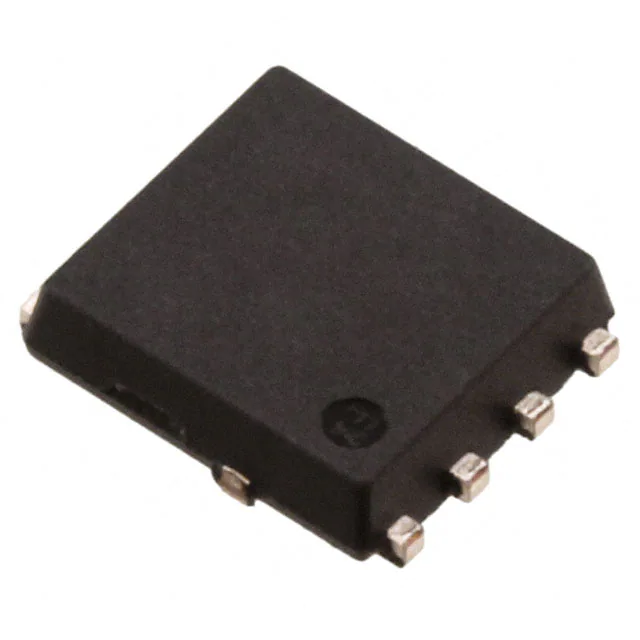

Renesas Electronics America Inc NP75P03YDG-E1-AY

Manufacturer No:
NP75P03YDG-E1-AY
Manufacturer:
Renesas Electronics America Inc
Package:
Tape & Reel (TR)
Datasheet:
NP75P03YDG-E1-AY Datasheet
ECAD Model:
-
Description:
MOSFET P-CH 30V 75A 8HSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:75A (Tc)
Drive Voltage (Max Rds On, Min Rds On):5V, 10V
Rds On (Max) @ Id, Vgs:6.2mOhm @ 37.5A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:141 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4800 pF @ 25 V
FET Feature:-
Power Dissipation (Max):1W (Ta), 138W (Tc)
Operating Temperature:175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-HSON
Package / Case:8-SMD, Flat Lead Exposed Pad
0 Remaining View Similar

In Stock

$1.94
15

Please send RFQ , we will respond immediately.
