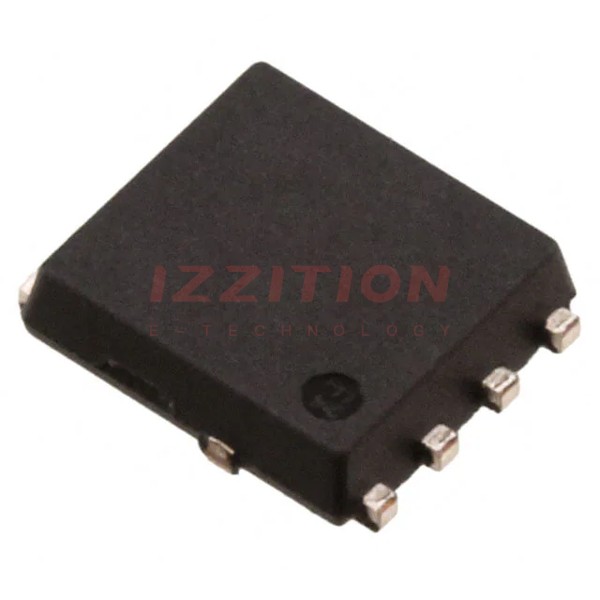

| Part Number | NP75N04YUG-E1-AY | NP35N04YUG-E1-AY | NP74N04YUG-E1-AY | NP75N04YLG-E1-AY |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) | 35A (Tc) | 75A (Tc) | 75A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.8mOhm @ 37.5A, 10V | 10mOhm @ 17.5A, 10V | 5.5mOhm @ 37.5A, 10V | 4.8mOhm @ 38A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 116 nC @ 10 V | 54 nC @ 10 V | 96 nC @ 10 V | 116 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6450 pF @ 25 V | 2850 pF @ 25 V | 5430 pF @ 25 V | 6450 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 1W (Ta), 138W (Tc) | 1W (Ta), 77W (Tc) | 1W (Ta), 120W (Tc) | 138W (Ta) |
| Operating Temperature | 175°C (TJ) | 175°C (TJ) | 175°C (TJ) | 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-HSON | 8-HSON | 8-HSON | 8-HSON (5x5.4) |
| Package / Case | 8-SMD, Flat Lead Exposed Pad | 8-SMD, Flat Lead Exposed Pad | 8-SMD, Flat Lead Exposed Pad | 8-PowerLDFN |
