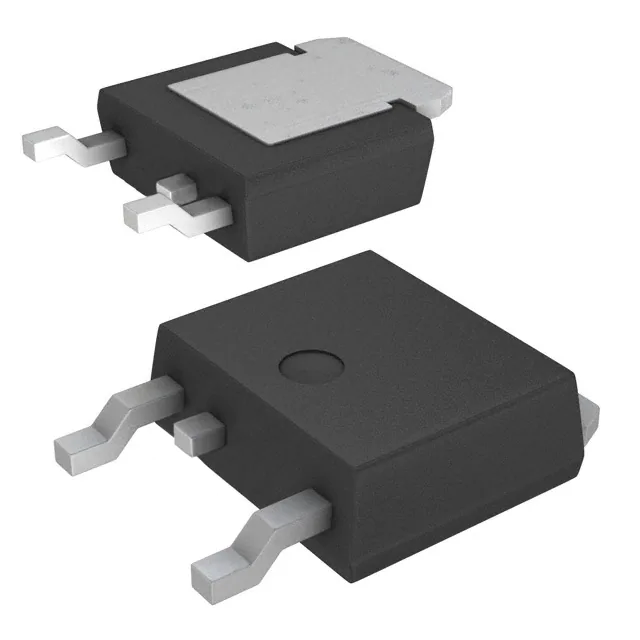

| Part Number | NP75N04VUK-E1-AY | NP75N04VDK-E1-AY |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) | 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5.7mOhm @ 38A, 10V | 5.7mOhm @ 38A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 10 V | 41 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2400 pF @ 25 V | 2450 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.2W (Ta), 75W (Tc) | 1.2W (Ta), 75W (Tc) |
| Operating Temperature | 175°C | 175°C |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | TO-252 (MP-3ZP) | TO-252 (MP-3ZP) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
