| Part Number | NP60N055VUK-E1-AY | NP90N055VUK-E1-AY |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) | 90A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 5.5mOhm @ 30A, 10V | 3.85mOhm @ 45A, 5V |
| Vgs(th) (Max) @ Id | 4V @ 253µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 63 nC @ 10 V | 102 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3750 pF @ 25 V | 6000 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.2W (Ta), 105W (Tc) | 1.2W (Ta), 147W (Tc) |
| Operating Temperature | 175°C (TJ) | 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

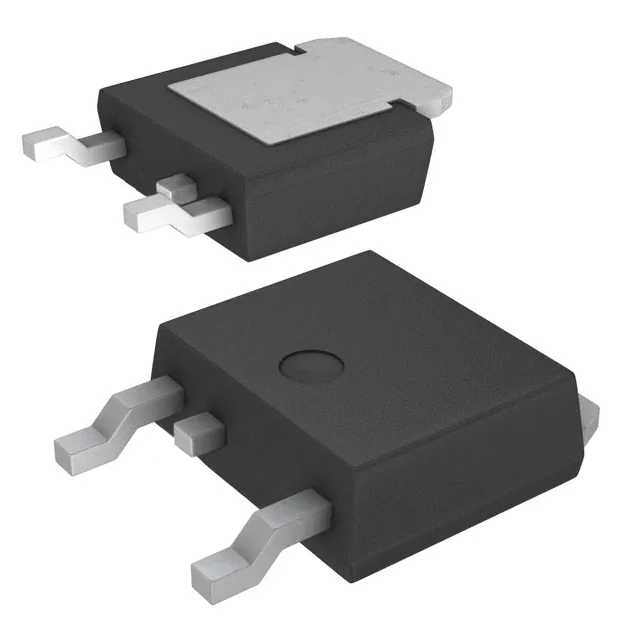

| Supplier Device Package | TO-252-3 | TO-252-3 |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
