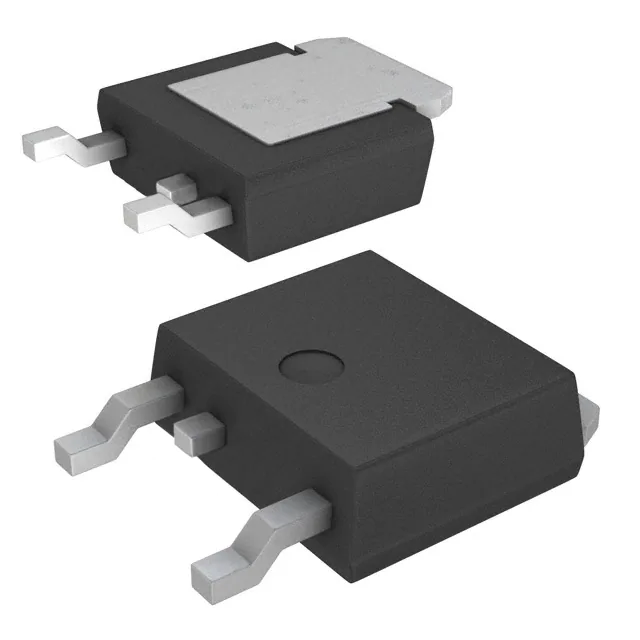

| Part Number | NP60N04VLK-E1-AY | NP60N04VUK-E1-AY | NP60N06VLK-E1-AY | NP60N04VDK-E1-AY |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 60 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) | 60A (Tc) | 60A (Tc) | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.9mOhm @ 30A, 10V | 3.85mOhm @ 30A, 10V | 7.9mOhm @ 30A, 10V | 3.85mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 4V @ 250µA | 2.5V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 63 nC @ 10 V | 63 nC @ 10 V | 56 nC @ 10 V | 63 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3680 pF @ 25 V | 3680 pF @ 25 V | 3600 pF @ 25 V | 3680 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 1.2W (Ta), 105W (Tc) | 1.2W (Ta), 105W (Tc) | 1.2W (Ta), 105W (Tc) | 1.2W (Ta), 105W (Tc) |
| Operating Temperature | 175°C | 175°C (TJ) | 175°C | 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | TO-252 (MP-3ZP) | TO-252 | TO-252 (MP-3ZP) | TO-252 (MP-3ZP) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
