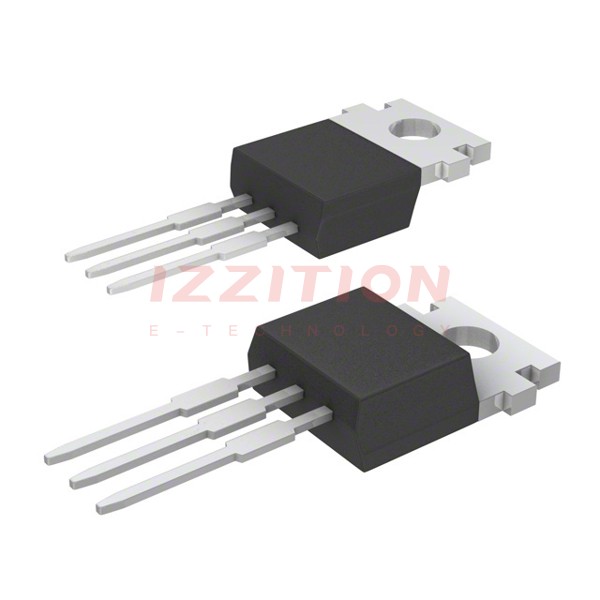

| Part Number | NP60N04MUG-S18-AY | NP70N04MUG-S18-AY | NP90N04MUG-S18-AY |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) | 70A (Tc) | 90A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | - | 10V |
| Rds On (Max) @ Id, Vgs | 6.3mOhm @ 30A, 10V | 5mOhm @ 35A, 10V | 3mOhm @ 45A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 60 nC @ 10 V | 90 nC @ 10 V | 182 nC @ 10 V |
| Vgs (Max) | ±20V | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3200 pF @ 25 V | 4900 pF @ 25 V | 11200 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.8W (Ta), 88W (Tc) | 1.8W (Ta), 115W (Tc) | 1.8W (Ta), 217W (Tc) |
| Operating Temperature | 175°C (TJ) | 175°C (TJ) | 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220 | TO-220 | TO-220-3 |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 |
