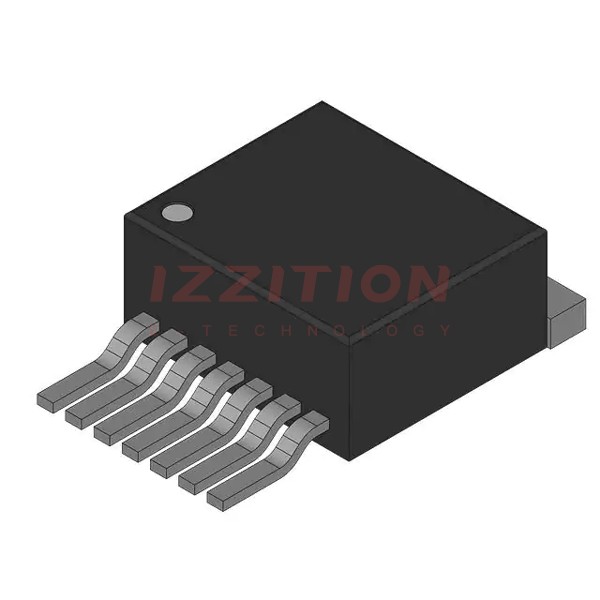

| Part Number | NP180N04TUG-E1-AY | NP180N04TUK-E1-AY | NP180N04TUJ-E1-AY | NP160N04TUG-E1-AY |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 180A (Tc) | 180A (Tc) | 180A (Tc) | 160A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.5mOhm @ 90A, 10V | 1.05mOhm @ 90A, 10V | 1.5mOhm @ 90A, 10V | 2mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 390 nC @ 10 V | 297 nC @ 10 V | 230 nC @ 10 V | 270 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 25700 pF @ 25 V | 15750 pF @ 25 V | 14250 pF @ 25 V | 15750 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 1.8W (Ta), 288W (Tc) | 1.8W (Ta), 348W (Tc) | 1.8W (Ta), 348W (Tc) | 1.8W (Ta), 220W (Tc) |
| Operating Temperature | 175°C (TJ) | 175°C (TJ) | 175°C (TJ) | 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | TO-263-7 | TO-263-7 | TO-263-7 | TO-263-7 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) |
