| Part Number | NP160N04TUG-E1-AY | NP161N04TUG-E1-AY | NP180N04TUG-E1-AY | NP160N04TUJ-E1-AY | NP160N04TDG-E1-AY |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete | Active | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 160A (Tc) | 160A (Tc) | 180A (Tc) | 160A (Tc) | 160A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | - | 10V | 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 80A, 10V | 1.8mOhm @ 80A, 10V | 1.5mOhm @ 90A, 10V | 2mOhm @ 80A, 10V | 2mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 270 nC @ 10 V | 345 nC @ 10 V | 390 nC @ 10 V | 180 nC @ 10 V | 270 nC @ 10 V |
| Vgs (Max) | ±20V | - | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 15750 pF @ 25 V | 20.25 pF @ 25 V | 25700 pF @ 25 V | 10350 pF @ 25 V | 15750 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 1.8W (Ta), 220W (Tc) | 1.8W (Ta), 250W (Tc) | 1.8W (Ta), 288W (Tc) | 1.8W (Ta), 250W (Tc) | 1.8W (Ta), 220W (Tc) |
| Operating Temperature | 175°C (TJ) | 175°C (TJ) | 175°C (TJ) | 175°C (TJ) | 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

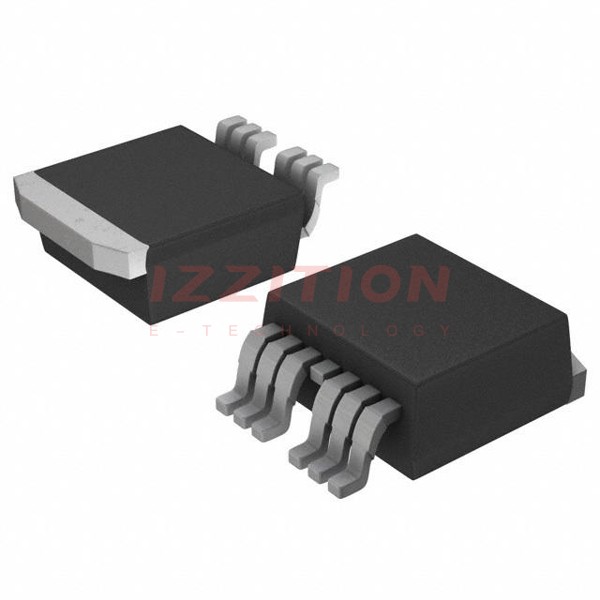

| Supplier Device Package | TO-263-7 | TO-263-7 | TO-263-7 | TO-263-7 | TO-263-7 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) |
