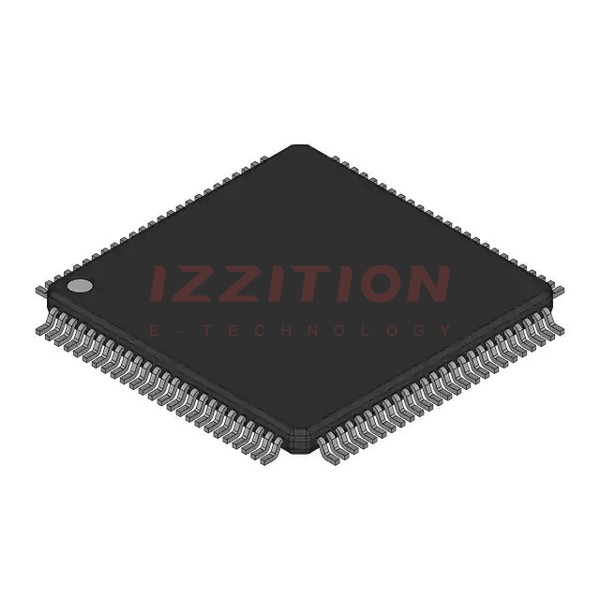

| Part Number | M306N5FCTFP#U0 | M306N5FWTFP#U0 | M306N5FCTGP#U0 | M306N5FCTFP#UK |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Active | Active |
| Core Processor | M16C/60 | M16C/60 | M16C/60 | M16C/60 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | CANbus, I²C, IEBus, SIO, UART/USART | CANbus, I²C, IEBus, SIO, UART/USART | CANbus, I²C, IEBus, SIO, UART/USART | CANbus, I²C, IEBus, SIO, UART/USART |
| Peripherals | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT |
| Number of I/O | 87 | 87 | 87 | 87 |
| Program Memory Size | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 5K x 8 | 5K x 8 | 5K x 8 | 5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.2V ~ 5.5V | 4.2V ~ 5.5V | 4.2V ~ 5.5V | 4.2V ~ 5.5V |
| Data Converters | A/D 26x10b; D/A 2x8b | A/D 26x10b; D/A 2x8b | A/D 26x10b; D/A 2x8b | A/D 26x10b; D/A 2x8b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-BQFP | 100-BQFP | 100-LQFP | 100-BQFP |
| Supplier Device Package | 100-QFP (14x20) | 100-QFP (14x20) | 100-LFQFP (14x14) | 100-QFP (14x20) |
