ISLA214P20IRZ
  • Share:

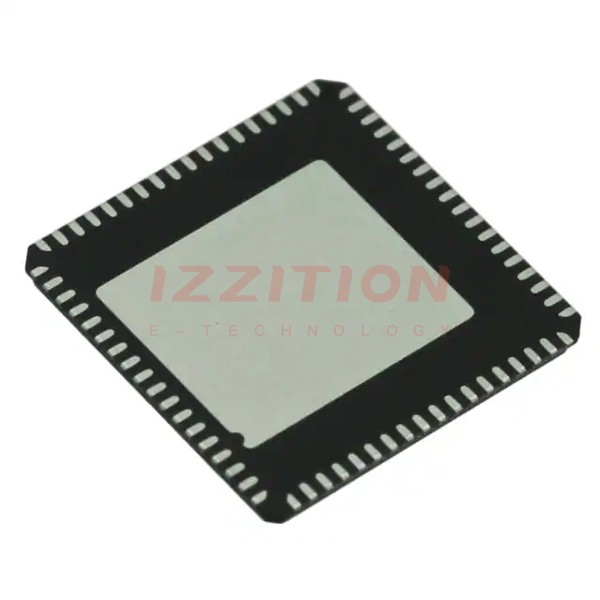

Renesas Electronics America Inc ISLA214P20IRZ

Manufacturer No:
ISLA214P20IRZ
Manufacturer:
Renesas Electronics America Inc
Package:
Tray
Datasheet:
ISLA214P20IRZ Datasheet
ECAD Model:
-
Description:
IC ADC 14BIT SAR 72QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:14
Sampling Rate (Per Second):200M
Number of Inputs:1
Input Type:Differential
Data Interface:LVDS - Parallel, Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:Internal
Voltage - Supply, Analog:1.7V ~ 1.9V
Voltage - Supply, Digital:1.7V ~ 1.9V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:72-VFQFN Exposed Pad
Supplier Device Package:72-QFN (10x10)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$167.91
4

Please send RFQ , we will respond immediately.

Similar Products

Part Number ISLA214P20IRZ ISLA216P20IRZ   ISLA214P50IRZ   ISLA224P20IRZ   ISLA214P25IRZ   ISLA212P20IRZ
Manufacturer Renesas Electronics America Inc Renesas Electronics America Inc Renesas Electronics America Inc Renesas Electronics America Inc Renesas Electronics America Inc Renesas Electronics America Inc
Product Status Active Active Active Active Obsolete Obsolete
Number of Bits 14 16 14 14 14 12
Sampling Rate (Per Second) 200M 200M 500M 125M 250M 200M
Number of Inputs 1 1 1 2 1 1
Input Type Differential Differential Differential Differential Differential Differential
Data Interface LVDS - Parallel, Parallel LVDS - Parallel, Parallel LVDS - Parallel, Parallel LVDS - Parallel, Parallel LVDS - Parallel, Parallel LVDS - Parallel, Parallel
Configuration S/H-ADC S/H-ADC S/H-ADC S/H-ADC S/H-ADC S/H-ADC
Ratio - S/H:ADC 1:1 1:1 1:1 1:1 1:1 1:1
Number of A/D Converters 1 1 1 2 1 1
Architecture SAR SAR SAR Pipelined SAR SAR
Reference Type Internal Internal Internal Internal Internal Internal
Voltage - Supply, Analog 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V
Voltage - Supply, Digital 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V
Features - - - - - Temperature Sensor
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Package / Case 72-VFQFN Exposed Pad 72-VFQFN Exposed Pad 72-VFQFN Exposed Pad 72-VFQFN Exposed Pad 72-VFQFN Exposed Pad 72-VFQFN Exposed Pad
Supplier Device Package 72-QFN (10x10) 72-QFN (10x10) 72-QFN (10x10) 72-QFN (10x10) 72-QFN (10x10) 72-QFN (10x10)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
