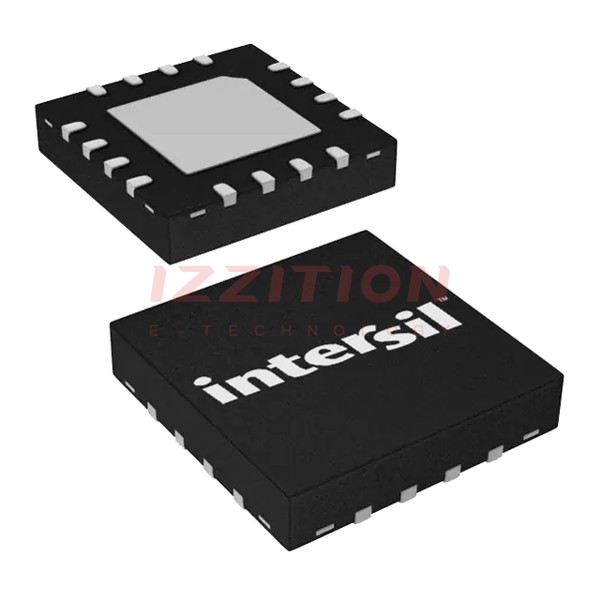

| Part Number | ISL97682IRTZ-T | ISL97682IRTZ-TK | ISL97692IRTZ-T | ISL97683IRTZ-T | ISL97684IRTZ-T | ISL97687IRTZ-T | ISL97686IRTZ-T |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Controller | DC DC Controller |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes | No | No |
| Number of Outputs | 2 | 2 | 4 | 3 | 4 | 4 | 4 |
| Voltage - Supply (Min) | 4V | 4V | 2.4V | 4V | 4V | 9V | 9V |
| Voltage - Supply (Max) | 26.5V | 26.5V | 5.5V | 26.5V | 26.5V | 32V | 32V |
| Voltage - Output | 45V | 45V | 26V | 45V | 45V | - | - |
| Current - Output / Channel | 100mA | 100mA | 40mA | 50mA | 50mA | 160mA | 160mA |
| Frequency | 600kHz | 600kHz | 400kHz ~ 1.5MHz | 600kHz | 600kHz | 200kHz ~ 1.2MHz | 200kHz ~ 1.2MHz |
| Dimming | PWM | PWM | - | PWM | PWM | Analog, PWM | PWM |
| Applications | Backlight | Backlight | Backlight | Backlight | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) | 16-TQFN (3x3) | 16-TQFN (3x3) | 16-TQFN (3x3) | 16-TQFN (3x3) | 28-QFN (5x5) | 28-QFN (5x5) |
