| Part Number | ISL9307IRTAAJGZ-T7A | ISL9307IRTAAJLZ-T7A | ISL9307IRTAANGZ-T7A | ISL9307IRTAAJYZ-T7A | ISL9307IRTAAJBZ-T7A | ISL9307IRTAAJFZ-T7A |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) |
| Number of Outputs | 4 | 4 | 4 | 4 | 4 | 4 |
| Frequency - Switching | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz | 3MHz |
| Voltage/Current - Output 1 | 0.8V ~ 5.5V, 1.5A | 0.8V ~ 5.5V, 1.5A | 0.8V ~ 5.5V, 1.5A | 0.8V ~ 5.5V, 1.5A | 0.8V ~ 5.5V, 1.5A | 0.8V ~ 5.5V, 1.5A |
| Voltage/Current - Output 2 | 0.8V ~ 5.5V, 1.5A | 0.8V ~ 5.5V, 1.5A | 0.8V ~ 5.5V, 1.5A | 0.8V ~ 5.5V, 1.5A | 0.8V ~ 5.5V, 1.5A | 0.8V ~ 5.5V, 1.5A |
| Voltage/Current - Output 3 | 2.8V, 300mA | 2.8V, 300mA | 3.3V, 300mA | 2.8V, 300mA | 2.8V, 300mA | 2.8V, 300mA |
| w/LED Driver | No | No | No | No | No | No |
| w/Supervisor | No | No | No | No | No | No |
| w/Sequencer | No | No | No | No | No | No |
| Voltage - Supply | 1.5V ~ 5.5V | 1.5V ~ 5.5V | 1.5V ~ 5.5V | 1.5V ~ 5.5V | 1.5V ~ 5.5V | 1.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

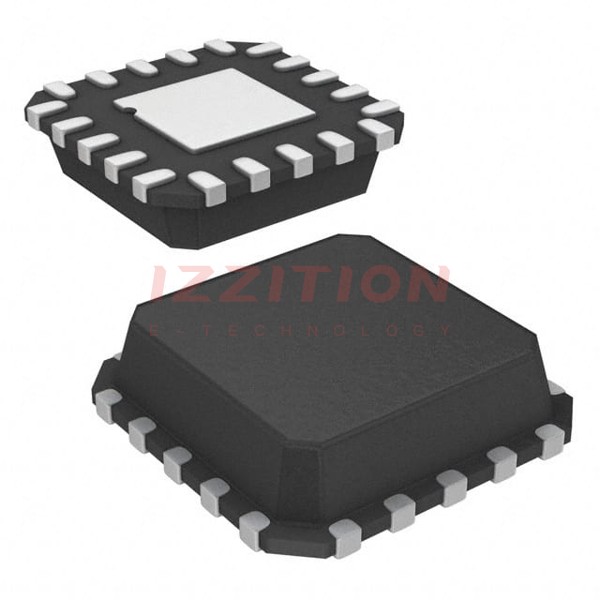

| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) | 16-QFN (4x4) |
