| Part Number | ISL9120IINZ-T | ISL9123IINZ-T | ISL9120IIAZ-T |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active |
| Function | Step-Up/Step-Down | Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck | Buck-Boost |
| Output Type | Fixed | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 1.8V | 1.8V | 1.8V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | 0.4V | 1V |
| Voltage - Output (Max) | - | 5.375V | 5.2V |
| Current - Output | 800mA | 600mA | 800mA |
| Frequency - Switching | - | 30kHz ~ 2.5MHz | - |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | - | -40°C ~ 85°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

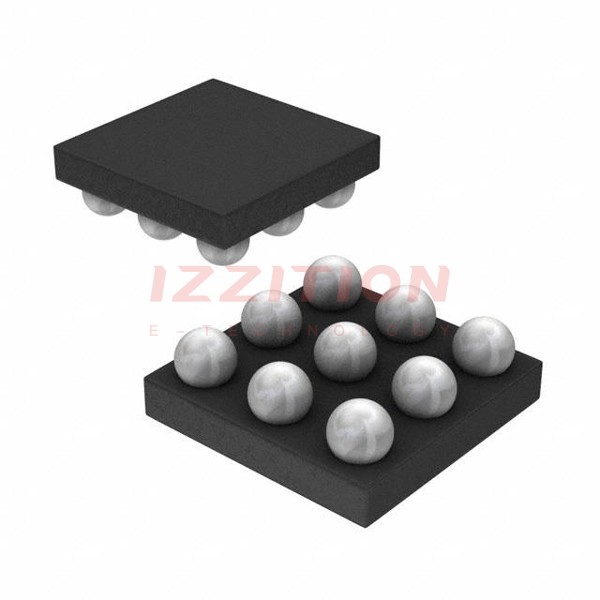

| Package / Case | 9-UFBGA, WLCSP | 8-UFBGA, WLCSP | 9-UFBGA, WLCSP |
| Supplier Device Package | 9-WLCSP (1.41x1.41) | 8-WLCSP (1.8x1) | 9-WLCSP (1.41x1.41) |
