| Part Number | ISL9113ERAZ-T | ISL9113EIAZ-T | ISL9113ER7Z-T |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active |
| Function | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost |
| Output Type | Adjustable | Adjustable | Fixed |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 0.8V | 0.8V | 0.8V |
| Voltage - Input (Max) | 4.7V | 4.7V | 4.7V |
| Voltage - Output (Min/Fixed) | 3V | 3V | 5V |
| Voltage - Output (Max) | 5.2V | 5.2V | - |
| Current - Output | 1.1A (Switch) | 1.1A (Switch) | 1.1A (Switch) |
| Frequency - Switching | 1.8MHz | 1.8MHz | 1.8MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

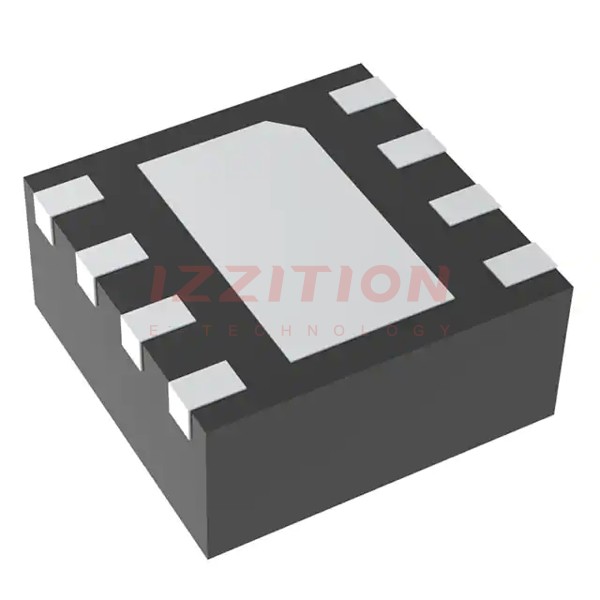

| Package / Case | 8-VFDFN Exposed Pad | 6-UFBGA, WLCSP | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x2) | 6-WLCSP (1.36x0.80) | 8-DFN (2x2) |
