Please send RFQ , we will respond immediately.

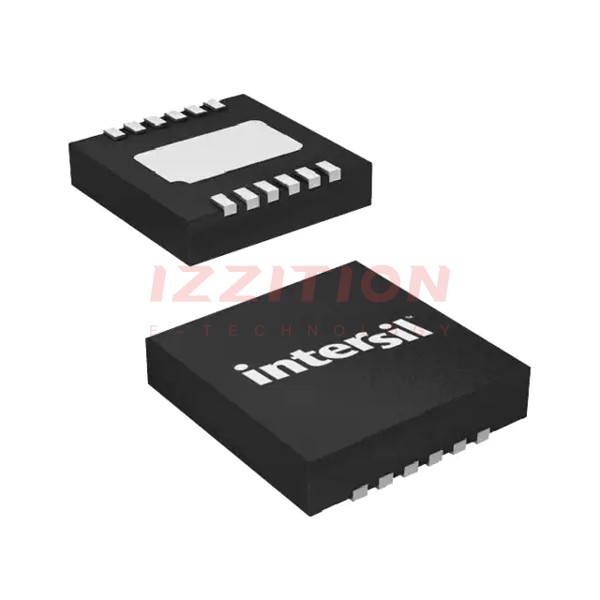

| Part Number | ISL9110IRTAZ-T7A | ISL9120IRTAZ-T7A | ISL9110IRTNZ-T7A | ISL91107IRTAZ-T7A | ISL9110IRT7Z-T7A |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active |
| Function | - | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | - | Positive | Positive | Positive | Positive |
| Topology | - | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost |
| Output Type | - | Adjustable | Fixed | Adjustable | Fixed |
| Number of Outputs | - | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | - | 1.8V | 1.8V | 1.8V | 1.8V |
| Voltage - Input (Max) | - | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | - | 1V | 3.3V | 1V | 5V |
| Voltage - Output (Max) | - | 5.2V | - | 5.2V | - |
| Current - Output | - | 800mA | 1.2A | 2A | 1.2A |
| Frequency - Switching | - | - | 2.5MHz | 2.5MHz | 2.5MHz |
| Synchronous Rectifier | - | No | Yes | Yes | Yes |
| Operating Temperature | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad | 12-WFQFN Exposed Pad | 12-WFDFN Exposed Pad | 20-WFQFN Exposed Pad | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-TDFN (3x3) | 12-TQFN (3x3) | 12-TDFN (3x3) | 20-TQFN (3x4) | 12-TDFN (3x3) |
