Please send RFQ , we will respond immediately.

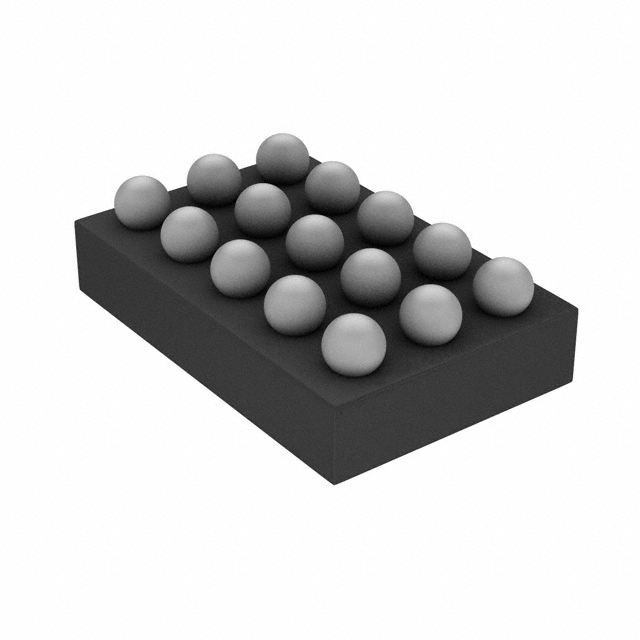

| Part Number | ISL91107IINZ-T | ISL91127IINZ-T | ISL91108IINZ-T | ISL9110SIINZ-T | ISL91106IINZ-T | ISL91107IIAZ-T |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost |
| Output Type | Fixed | Fixed | Fixed | Adjustable | Adjustable (Fixed) | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 1.8V | 1.8V | 1.8V | 1.8V | 1.8V | 1.8V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 1V | 1V (3.3V, 3.4V) | 1V |
| Voltage - Output (Max) | - | - | - | 5.2V | 5.2V | 5.2V |
| Current - Output | 2A | 2.1A | 3.7A (Switch) | 1.2A | 2A | 2A |
| Frequency - Switching | 2.5MHz | 2.5MHz | 2.6MHz | 2.5MHz | 2.5MHz | 2.5MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | - | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 15-UFBGA, WLCSP | 20-UFBGA, WLCSP | 20-UFBGA, WLCSP | 8-SOIC (0.154", 3.90mm Width) | 15-UFBGA, WLCSP | 15-UFBGA, WLCSP |
| Supplier Device Package | 15-WLCSP (1.51x2.15) | 20-WLCSP (2.15x1.74) | 20-WLCSP | 8-SOIC | 15-WLCSP (1.51x2.15) | 15-WLCSP (1.51x2.15) |
