| Part Number | ISL91107IIAZ-T | ISL91107IINZ-T | ISL91108IIAZ-T | ISL91127IIAZ-T | ISL91117IIAZ-T | ISL9110SIIAZ-T | ISL91106IIAZ-T |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Boost | Buck-Boost | Buck-Boost |
| Output Type | Adjustable | Fixed | Adjustable | - | Adjustable | Adjustable | Adjustable (Fixed) |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 1.8V | 1.8V | 1.8V | 1.8V | 1.8V | 1.8V | 1.8V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 4.8V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1V | 3.3V | 1V | - | 0.8V | 1V | 1V (3.3V, 3.4V) |
| Voltage - Output (Max) | 5.2V | - | 5.2V | - | 6.5V (Switch) | 5.2V | 5.2V |
| Current - Output | 2A | 2A | 3.7A (Switch) | 2.1A | 3.7A (Switch) | 1.2A | 2A |
| Frequency - Switching | 2.5MHz | 2.5MHz | 2.6MHz | 2.5MHz | 2.6MHz | 2.5MHz | 2.5MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | - | - | -40°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

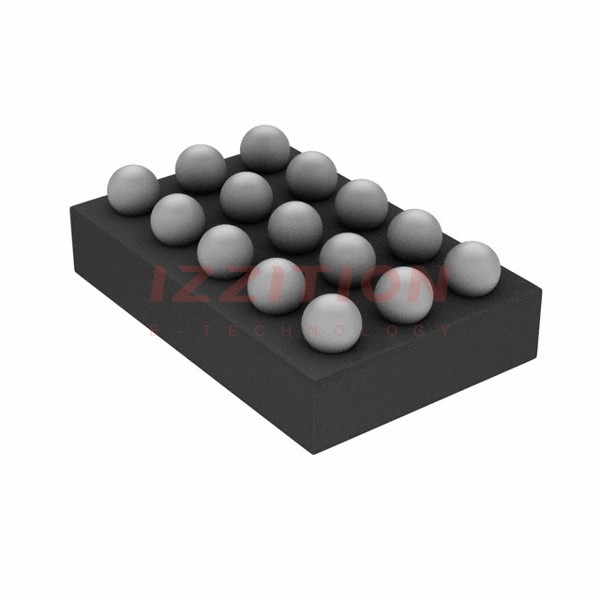

| Package / Case | 15-UFBGA, WLCSP | 15-UFBGA, WLCSP | 20-UFBGA, WLCSP | 20-UFBGA, WLCSP | 20-UFBGA, WLCSP | 8-SOIC (0.154", 3.90mm Width) | 15-UFBGA, WLCSP |
| Supplier Device Package | 15-WLCSP (1.51x2.15) | 15-WLCSP (1.51x2.15) | 20-WLCSP | 20-WLCSP (2.15x1.74) | 20-WLCSP | 8-SOIC | 15-WLCSP (1.51x2.15) |
