Please send RFQ , we will respond immediately.

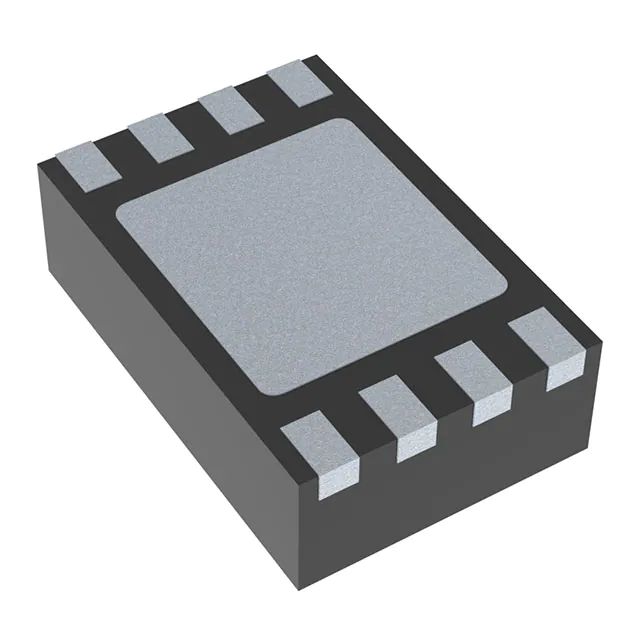

| Part Number | ISL9001IRJZ-T | ISL9001IRNZ-T | ISL9005IRJZ-T | ISL9001IRRZ-T | ISL9001IRKZ-T | ISL9001IRLZ-T | ISL9001IRMZ-T | ISL9001AIRJZ-T | ISL9001IRBZ-T | ISL9001IRCZ-T | ISL9001IRFZ-T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V | 6.5V |
| Voltage - Output (Min/Fixed) | 2.8V | 3.3V | 2.8V | 2.6V | 2.85V | 2.9V | 3V | 2.8V | 1.5V | 1.8V | 2.5V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.4V @ 300mA | 0.325V @ 300mA | 0.5V @ 300mA | 0.4V @ 300mA | 0.325V @ 300mA | 0.325V @ 300mA | 0.325V @ 300mA | 0.4V @ 300mA | - | - | 0.4V @ 300mA |
| Current - Output | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 32 µA | 32 µA | 75 µA | 32 µA | 32 µA | 32 µA | 32 µA | 32 µA | 32 µA | 32 µA | 32 µA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - | - | - | - |
| PSRR | - | - | - | - | - | - | - | - | - | 90db ~ 50dB (1kHz ~ 100kHz) | - |
| Control Features | Enable, Power On Reset | Enable, Power On Reset | Enable | Enable, Power On Reset | Enable, Power On Reset | Enable, Power On Reset | Enable, Power On Reset | Enable, Power On Reset | Enable, Power On Reset | Enable, Power On Reset | Enable, Power On Reset |
| Protection Features | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) | 8-DFN (2x3) | 8-DFN (2x3) | 8-DFN (2x3) | 8-DFN (2x3) | 8-DFN (2x3) | 8-DFN (2x3) | 8-DFN (2x3) | 8-DFN (2x3) | 8-DFN (2x3) | 8-DFN (2x3) |
