| Part Number | ISL89164FRTAZ-T | ISL89164FRTBZ-T | ISL89165FRTAZ-T | ISL89164FRTCZ-T | ISL89166FRTAZ-T | ISL89167FRTAZ-T | ISL89168FRTAZ-T | ISL89160FRTAZ-T | ISL89161FRTAZ-T | ISL89162FRTAZ-T | ISL89163FRTAZ-T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 7.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V |
| Logic Voltage - VIL, VIH | 1.22V, 2.08V | 1.85V, 3.15V | 1.22V, 2.08V | 2.4V, 9.6V | 1.22V, 2.08V | 1.22V, 2.08V | 1.22V, 2.08V | 1.22V, 2.08V | 1.22V, 2.08V | 1.22V, 2.08V | 1.22V, 2.08V |
| Current - Peak Output (Source, Sink) | 6A, 6A | 6A, 6A | 6A, 6A | 6A, 6A | 6A, 6A | 6A, 6A | 6A, 6A | 6A, 6A | 6A, 6A | 6A, 6A | 6A, 6A |
| Input Type | Inverting | Inverting | Inverting, Non-Inverting | Inverting | Non-Inverting | Inverting | Inverting, Non-Inverting | Non-Inverting | Inverting | Inverting, Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

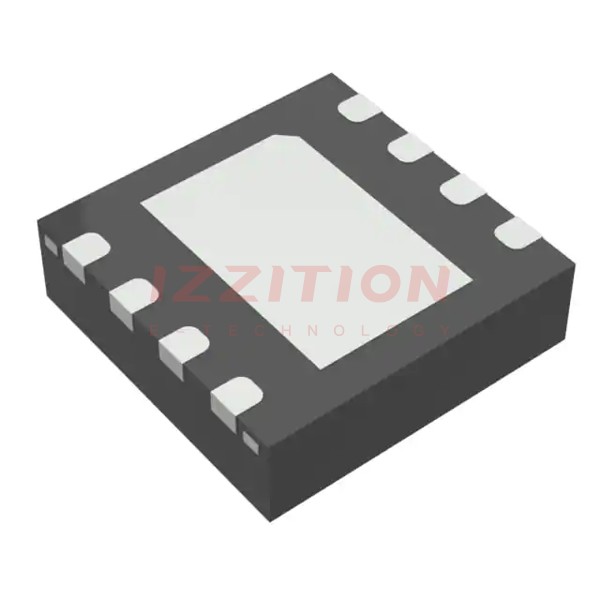

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (3x3) | 8-TDFN (3x3) | 8-TDFN (3x3) | 8-TDFN (3x3) | 8-TDFN (3x3) | 8-TDFN (3x3) | 8-TDFN (3x3) | 8-TDFN (3x3) | 8-TDFN (3x3) | 8-TDFN (3x3) | 8-TDFN (3x3) |
