| Part Number | ISL8843AAUZ | ISL8843AUZ | ISL8843AMUZ | ISL8845AAUZ | ISL8840AAUZ | ISL8841AAUZ | ISL8843AABZ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Elantec | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete | Active | Active | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Boost, Flyback | - | Boost, Flyback | Boost, Flyback | Boost, Flyback | Boost, Flyback | Boost, Flyback |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 30V | 9V ~ 30V | 9V ~ 30V | 9V ~ 30V | 9V ~ 30V | 9V ~ 30V | 9V ~ 30V |
| Frequency - Switching | Up to 2MHz | Up to 2MHz | Up to 2MHz | Up to 2MHz | Up to 2MHz | Up to 2MHz | Up to 2MHz |
| Duty Cycle (Max) | 96% | 96% | 96% | 48% | 96% | 48% | 96% |
| Synchronous Rectifier | No | No | No | No | No | No | No |
| Clock Sync | No | No | No | No | No | No | No |
| Serial Interfaces | - | - | - | - | - | - | - |
| Control Features | Current Limit, Frequency Control | Current Limit, Frequency Control | Current Limit, Frequency Control | Current Limit, Frequency Control | Current Limit, Frequency Control | Current Limit, Frequency Control | Current Limit, Frequency Control |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C | -55°C ~ 125°C (TJ) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

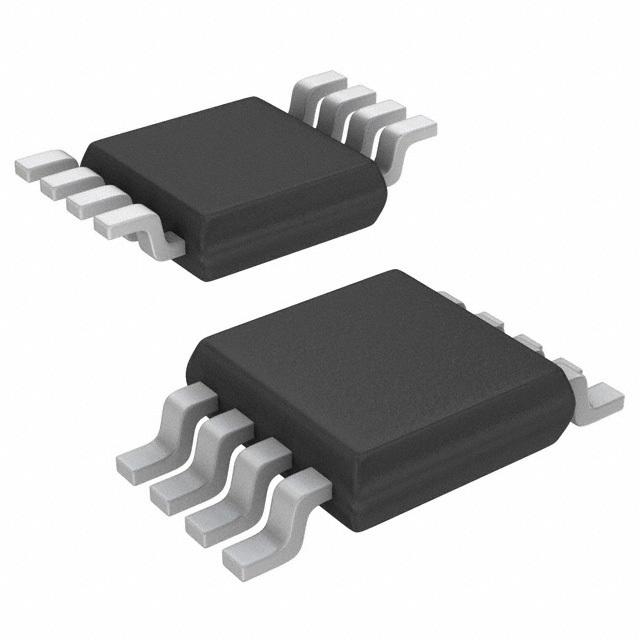

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-SOIC |
