| Part Number | ISL8500IRZ | ISL8560IRZ | ISL8502IRZ | ISL85001IRZ |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 9V | 5.5V | 4.5V |
| Voltage - Input (Max) | 25V | 60V | 14V | 25V |
| Voltage - Output (Min/Fixed) | 0.6V | 1.21V | 0.6V | 0.6V |
| Voltage - Output (Max) | 19V | 55V | 14V | 19V |
| Current - Output | 2A | 2A | 2A | 1A |
| Frequency - Switching | 500kHz | 100kHz ~ 600kHz | 500kHz ~ 1.2MHz | 500kHz |
| Synchronous Rectifier | No | Yes | Yes | No |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

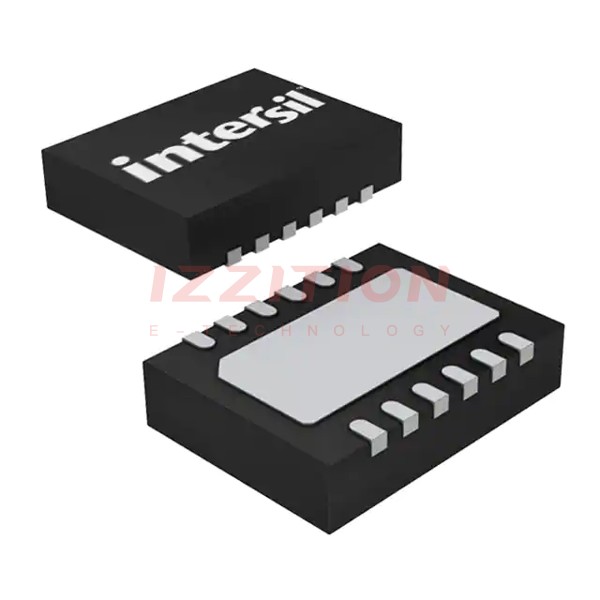

| Package / Case | 12-VFDFN Exposed Pad | 20-VQFN Exposed Pad | 24-VFQFN Exposed Pad | 12-VFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x3) | 20-QFN (6x6) | 24-QFN (4x4) | 12-DFN (4x3) |
