| Part Number | ISL8499IR | ISL8499IV | ISL8499IRZ |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Intersil |
| Product Status | Obsolete | Obsolete | Active |
| Switch Circuit | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 |
| Number of Circuits | 4 | 4 | 4 |
| On-State Resistance (Max) | 250mOhm | 250mOhm | 250mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm | 40mOhm | 40mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V | 1.65V ~ 4.5V | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 23ns | 25ns, 23ns | 25ns, 23ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | -120pC | -120pC | -120pC |
| Channel Capacitance (CS(off), CD(off)) | 106pF | 106pF | 106pF |
| Current - Leakage (IS(off)) (Max) | 50nA | 50nA | 50nA |
| Crosstalk | -98dB @ 100kHz | -98dB @ 100kHz | -98dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

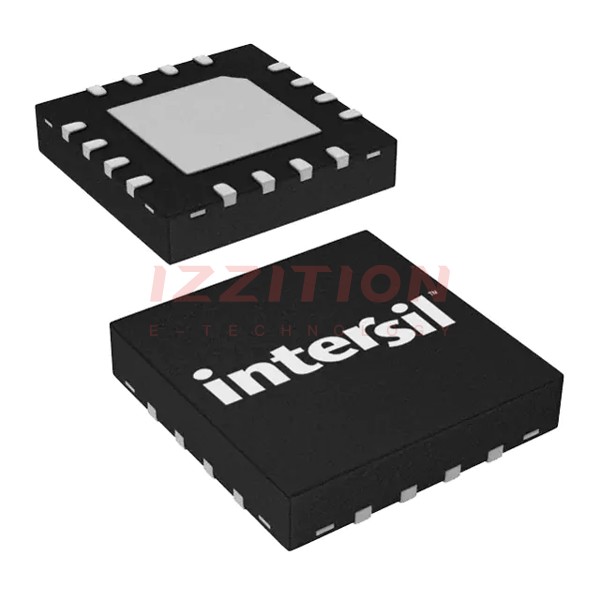

| Package / Case | 16-VFQFN Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 16-TSSOP | 16-QFN (3x3) |
