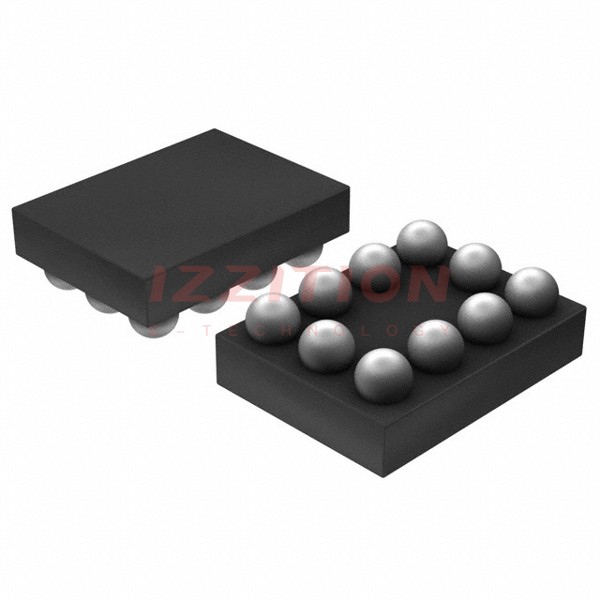

| Part Number | ISL84684IIZ-T | ISL84684IRZ-T | ISL84684IUZ-T |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Intersil |
| Product Status | Obsolete | Active | Active |
| Switch Circuit | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 |
| Number of Circuits | 2 | 2 | 2 |
| On-State Resistance (Max) | 140mOhm (Typ) | 500mOhm | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm | 55mOhm | 55mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 4.5V | 1.65V ~ 3.6V | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 35ns | 50ns, 27ns | 50ns, 27ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | 260pC | 94pC | 94pC |
| Channel Capacitance (CS(off), CD(off)) | 140pF | 65pF | 65pF |
| Current - Leakage (IS(off)) (Max) | 900nA (Typ) | 4nA | 4nA |
| Crosstalk | -105dB @ 100kHz | -85dB @ 100kHz | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WFBGA, WLCSP | 10-VFDFN Exposed Pad | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-WLCSP (2x1.5) | 10-TDFN (3x3) | 10-MSOP |
