| Part Number | ISL8002AIRZ-T7A | ISL8009AIRZ-T7A | ISL8002BIRZ-T7A | ISL8002IRZ-T7A | ISL80020AIRZ-T7A | ISL80020IRZ-T7A |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.8V | 0.6V | 0.6V | 0.6V | 0.6V |
| Voltage - Output (Max) | 5.5V | 5.5V | 4.4V | 5.5V | 5.5V | 5.5V |
| Current - Output | 2A | 1.5A | 2A | 2A | 2A | 2A |
| Frequency - Switching | 2MHz | 1.6MHz | 2MHz | 1MHz | 2MHz | 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

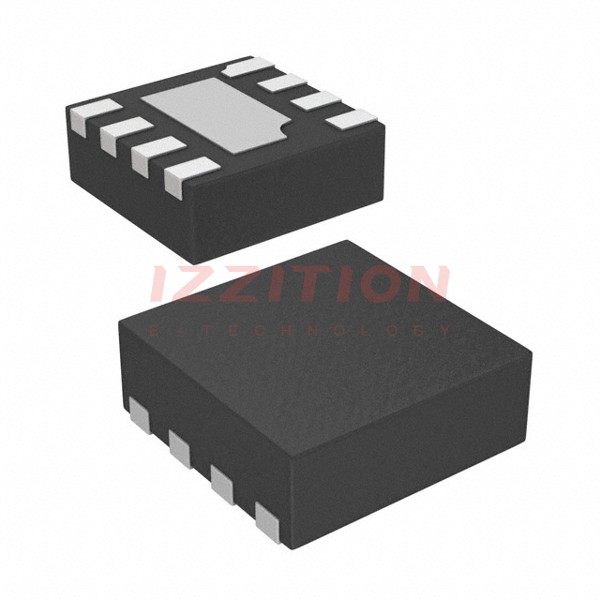

| Package / Case | 8-WFDFN Exposed Pad | 8-VFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN-EP (2x2) | 8-DFN (2x3) | 8-TDFN-EP (2x2) | 8-TDFN-EP (2x2) | 8-TDFN-EP (2x2) | 8-TDFN-EP (2x2) |
