| Part Number | ISL78420ARTAZ | ISL78420ARTBZ |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous |
| Number of Drivers | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 14V | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 1.8V, 4V | 1.8V, 4V |
| Current - Peak Output (Source, Sink) | 2A, 2A | 2A, 2A |
| Input Type | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 114 V | 114 V |
| Rise / Fall Time (Typ) | 10ns, 10ns | 10ns, 10ns |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

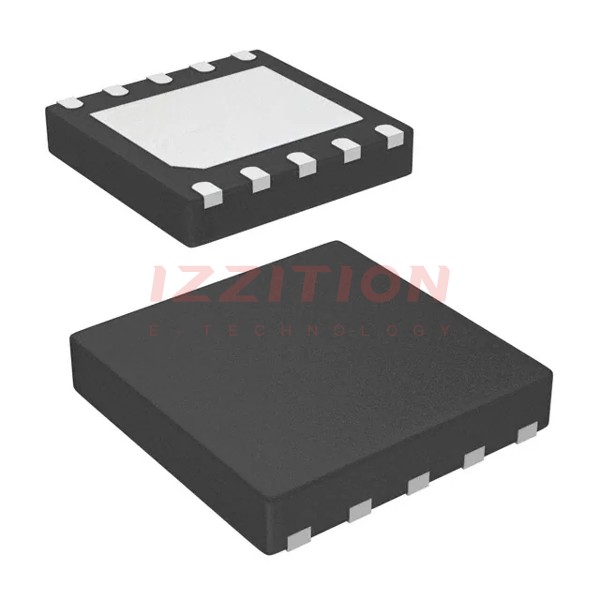

| Package / Case | 10-WDFN Exposed Pad | 9-WDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (4x4) | 9-TDFN (4x4) |
