Please send RFQ , we will respond immediately.

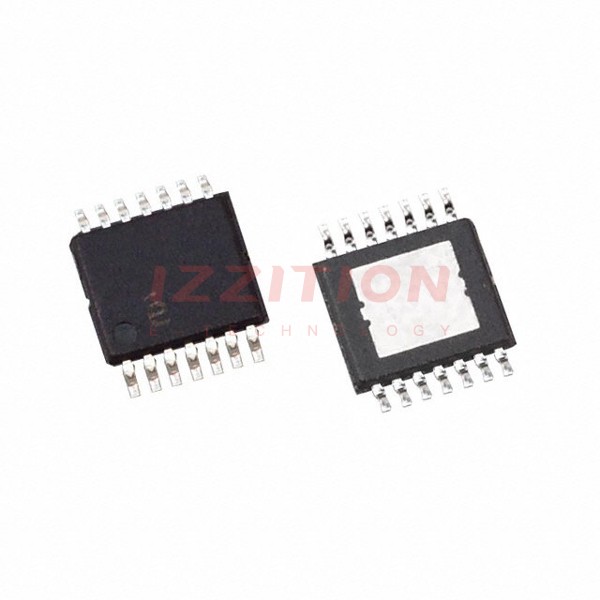

| Part Number | ISL78301FVEAZ-T7A | ISL78301FVEBZ-T7A | ISL78301FVECZ-T7A |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Adjustable |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 3.3V | 5V | 2.5V |
| Voltage - Output (Max) | - | - | 12V |
| Voltage Dropout (Max) | 0.525V @ 150mA | 0.46V @ 150mA | - |
| Current - Output | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 28 µA | 28 µA | 24 µA |
| Current - Supply (Max) | 142 µA | 142 µA | 125 µA |
| PSRR | 55dB (100Hz) | 55dB (100Hz) | 66dB (100Hz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 14-HTSSOP | 14-HTSSOP | 14-HTSSOP |
