ISL78223AAZ

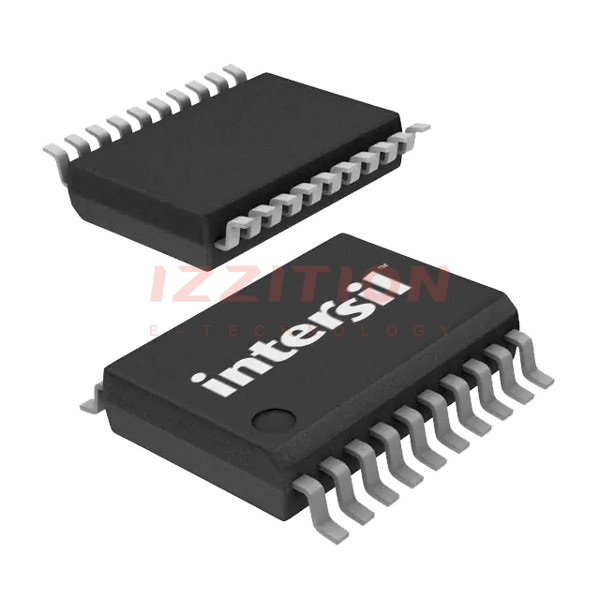

ISL78223AAZ Image
×
Favorite
Compare
Add to RFQ
Share:
Renesas Electronics America Inc ISL78223AAZ
Manufacturer No:
ISL78223AAZ
Manufacturer:
Renesas Electronics America Inc
Package:
Tube
Datasheet:
ISL78223AAZ Datasheet
ECAD Model:
-
Description:
IC REG CTRLR FULL-BRIDGE 20QSOP
Delivery:
Payment:
Product Attributes
Output Type:
Transistor Driver
Function:
Step-Up/Step-Down
Output Configuration:
Positive, Isolation Capable
Topology:
Full-Bridge
Number of Outputs:
1
Output Phases:
1
Voltage - Supply (Vcc/Vdd):
9V ~ 16V
Frequency - Switching:
Up to 2MHz
Duty Cycle (Max):
99%
Synchronous Rectifier:
Yes
Clock Sync:
No
Serial Interfaces:
-
Control Features:
Frequency Control, Ramp, Soft Start
Operating Temperature:
-40°C ~ 105°C (TA)
Mounting Type:
Surface Mount
Package / Case:
20-SSOP (0.154", 3.90mm Width)
Supplier Device Package:
20-QSOP
0
Remaining
View Similar
In Stock
UnitPrice:
$8.39
Quantity:
13
