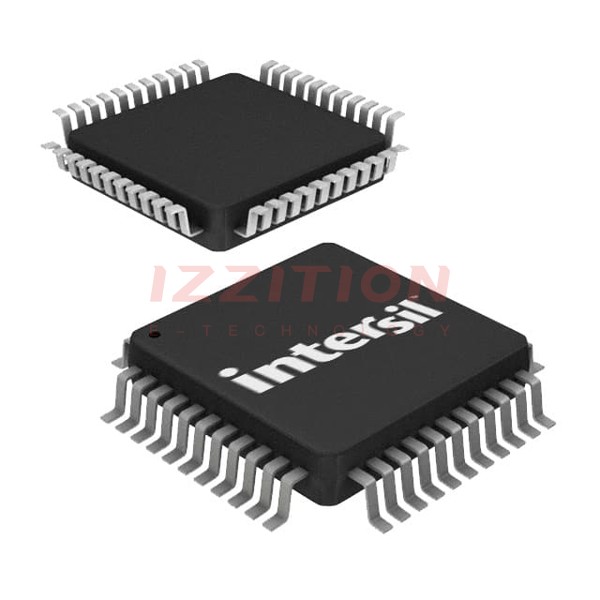

| Part Number | ISL78220ANEZ | ISL78225ANEZ |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active |
| Output Type | PWM Signal | Transistor Driver |
| Function | Step-Up | Step-Up |
| Output Configuration | Positive | Positive |
| Topology | Boost | Boost |
| Number of Outputs | 6 | 4 |
| Output Phases | 6 | 4 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Frequency - Switching | 75kHz ~ 1MHz | 75kHz ~ 1MHz |
| Duty Cycle (Max) | 91.7% | 91.7% |
| Synchronous Rectifier | - | No |
| Clock Sync | Yes | Yes |
| Serial Interfaces | - | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start | Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 44-QFP | 44-QFP |
| Supplier Device Package | 44-MQFP (10x10) | 44-MQFP (10x10) |
