ISL6843IUZ-T
  • Share:

Renesas Electronics America Inc ISL6843IUZ-T

Manufacturer No:
ISL6843IUZ-T
Manufacturer:
Renesas Electronics America Inc
Package:
Tape & Reel (TR)
Datasheet:
ISL6843IUZ-T Datasheet
ECAD Model:
-
Description:

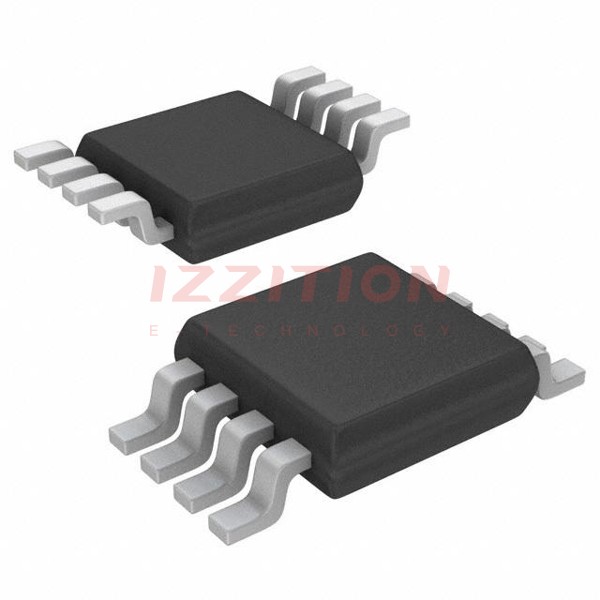

IC REG CTRLR BOOST/FLYBACK 8MSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Transistor Driver
Function:Step-Up, Step-Up/Step-Down
Output Configuration:Positive, Isolation Capable
Topology:Boost, Flyback
Number of Outputs:1
Output Phases:1
Voltage - Supply (Vcc/Vdd):9V ~ 16V
Frequency - Switching:Up to 2MHz
Duty Cycle (Max):96%
Synchronous Rectifier:Yes
Clock Sync:No
Serial Interfaces:-
Control Features:Current Limit, Frequency Control
Operating Temperature:-40°C ~ 105°C (TA)
Mounting Type:Surface Mount
Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:8-MSOP
0 Remaining View Similar

In Stock

$2.65
23

Please send RFQ , we will respond immediately.

Similar Products

Part Number ISL6843IUZ-T ISL6845IUZ-T   ISL6840IUZ-T   ISL6841IUZ-T   ISL6843IBZ-T   ISL6843IRZ-T   ISL6843IU-T
Manufacturer Renesas Electronics America Inc Intersil Renesas Electronics America Inc Renesas Electronics America Inc Renesas Electronics America Inc Intersil Intersil
Product Status Active Obsolete Active Obsolete Active Obsolete Obsolete
Output Type Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver
Function Step-Up, Step-Up/Step-Down Step-Up, Step-Up/Step-Down Step-Up, Step-Up/Step-Down Step-Up, Step-Up/Step-Down Step-Up, Step-Up/Step-Down Step-Up, Step-Up/Step-Down Step-Up, Step-Up/Step-Down
Output Configuration Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable Positive, Isolation Capable
Topology Boost, Flyback Boost, Flyback Boost, Flyback Boost, Flyback Boost, Flyback Boost, Flyback Boost, Flyback
Number of Outputs 1 1 1 1 1 1 1
Output Phases 1 1 1 1 1 1 1
Voltage - Supply (Vcc/Vdd) 9V ~ 16V 9V ~ 16V 7.5V ~ 14V 7.5V ~ 14V 9V ~ 16V 9V ~ 16V 9V ~ 16V
Frequency - Switching Up to 2MHz Up to 2MHz Up to 2MHz Up to 2MHz Up to 2MHz Up to 2MHz Up to 2MHz
Duty Cycle (Max) 96% 48% 96% 48% 96% 96% 96%
Synchronous Rectifier Yes Yes Yes Yes Yes Yes Yes
Clock Sync No No No No No No No
Serial Interfaces - - - - - - -
Control Features Current Limit, Frequency Control Current Limit, Frequency Control Current Limit, Frequency Control Current Limit, Frequency Control Current Limit, Frequency Control Current Limit, Frequency Control Current Limit, Frequency Control
Operating Temperature -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) 8-SOIC (0.154", 3.90mm Width) 8-VFDFN Exposed Pad 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package 8-MSOP 8-MSOP 8-MSOP 8-MSOP 8-SOIC 8-DFN (2x3) 8-MSOP
