| Part Number | ISL6625AIRZ-T | ISL6615AIRZ-T | ISL6620AIRZ-T | ISL6622AIRZ-T | ISL6625ACRZ-T |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Last Time Buy | Last Time Buy | Obsolete | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 5.5V ~ 13.2V | 6.8V ~ 13.2V | 4.5V ~ 5.5V | 6.8V ~ 13.2V | 5.5V ~ 13.2V |
| Logic Voltage - VIL, VIH | - | - | - | - | - |
| Current - Peak Output (Source, Sink) | -, 3A | 2.5A, 4A | 2A, 2A | 1.25A, 2A | -, 3A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 36 V | 36 V | 36 V | 36 V | 36 V |
| Rise / Fall Time (Typ) | 31ns, 18ns | 13ns, 10ns | 8ns, 8ns | 26ns, 18ns | 31ns, 18ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

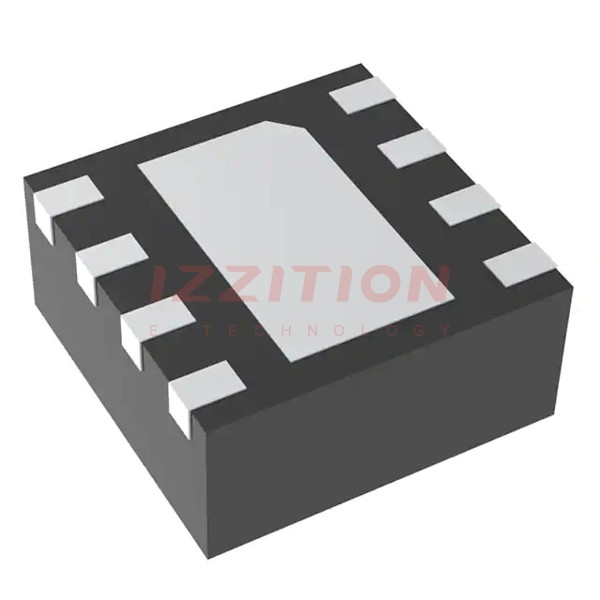

| Package / Case | 8-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x2) | 10-DFN (3x3) | 10-DFN (3x3) | 10-DFN (3x3) | 8-DFN (2x2) |
