| Part Number | ISL6569CR | ISL6569CRZ | ISL6559CR | ISL6564CR | ISL6569ACR | ISL6569CB |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Type | PWM Signal | PWM Signal | PWM Signal | PWM Signal | PWM Signal | PWM Signal |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Number of Outputs | 2 | 2 | 4 | 4 | 2 | 2 |
| Output Phases | 2 | 2 | 4 | 4 | 2 | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Frequency - Switching | 80kHz ~ 1MHz | 80kHz ~ 1MHz | 80kHz ~ 1MHz | 80kHz ~ 1.5MHz | 80kHz ~ 1MHz | 80kHz ~ 1MHz |
| Duty Cycle (Max) | 75% | 75% | 75% | 66.7% | 75% | 75% |
| Synchronous Rectifier | - | - | - | - | - | - |
| Clock Sync | No | No | No | No | No | No |
| Serial Interfaces | - | - | - | - | - | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good | Current Limit, Enable, Frequency Control, Power Good | Current Limit, Enable, Frequency Control, Power Good | Enable, Frequency Control, Power Good | Current Limit, Enable, Frequency Control, Power Good | Current Limit, Enable, Frequency Control, Power Good |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 85°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

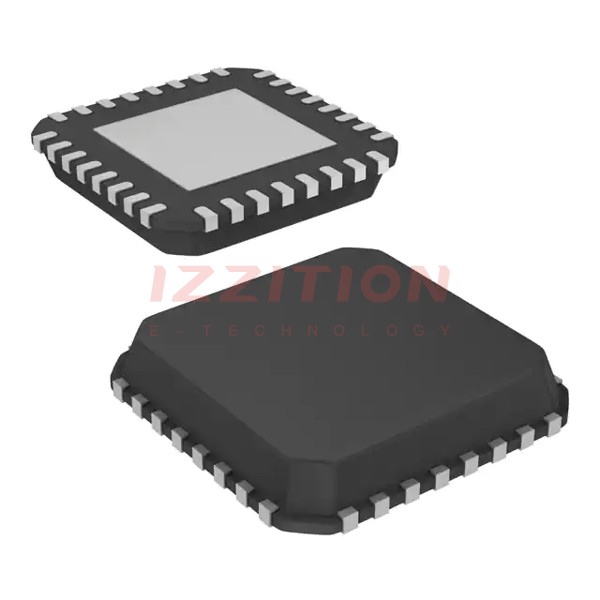

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 40-QFN (6x6) | 32-QFN (5x5) | 24-SOIC |
