ISL6522IR
  • Share:

Renesas Electronics America Inc ISL6522IR

Manufacturer No:
ISL6522IR
Manufacturer:
Renesas Electronics America Inc
Package:
Tube
Datasheet:
ISL6522IR Datasheet
ECAD Model:
-
Description:

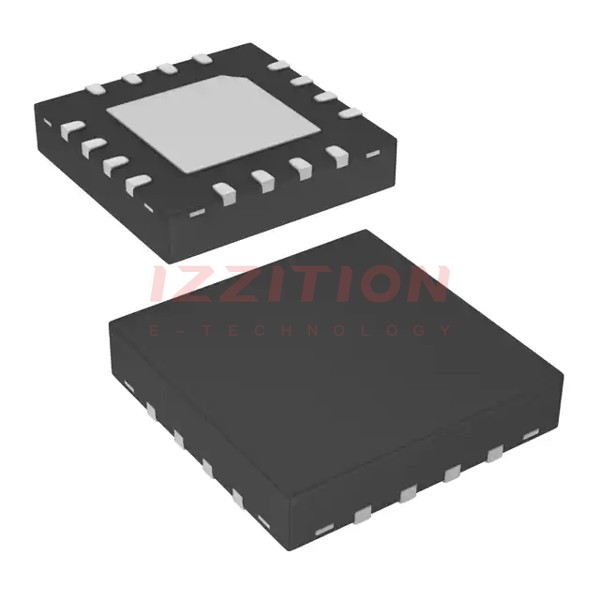

IC REG CTRLR BUCK 16QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Transistor Driver
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Number of Outputs:1
Output Phases:1
Voltage - Supply (Vcc/Vdd):10.8V ~ 13.2V
Frequency - Switching:200kHz
Duty Cycle (Max):100%
Synchronous Rectifier:Yes
Clock Sync:No
Serial Interfaces:-
Control Features:Enable, Frequency Control, Phase Control, Soft Start
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-VQFN Exposed Pad
Supplier Device Package:16-QFN (5x5)
0 Remaining View Similar

In Stock

-
240

Please send RFQ , we will respond immediately.

Similar Products

Part Number ISL6522IR ISL6526IR   ISL6527IR   ISL6522IRZ   ISL6520IR   ISL6522BIR   ISL6522CR   ISL6522IB
Manufacturer Renesas Electronics America Inc Intersil Intersil Renesas Electronics America Inc Intersil Intersil Renesas Electronics America Inc Renesas Electronics America Inc
Product Status Obsolete Obsolete Obsolete Active Obsolete Obsolete Obsolete Obsolete
Output Type Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver Transistor Driver
Function Step-Down Step-Down Step-Down Step-Down Step-Down Step-Down Step-Down Step-Down
Output Configuration Positive Positive Positive Positive Positive Positive Positive Positive
Topology Buck Buck Buck Buck Buck Buck Buck Buck
Number of Outputs 1 1 1 1 1 1 1 1
Output Phases 1 1 1 1 1 1 1 1
Voltage - Supply (Vcc/Vdd) 10.8V ~ 13.2V 2.97V ~ 3.63V 2.97V ~ 3.63V 10.8V ~ 13.2V 4.5V ~ 5.5V 10.8V ~ 13.2V 10.8V ~ 13.2V 10.8V ~ 13.2V
Frequency - Switching 200kHz 600kHz 600kHz 200kHz 300kHz 200kHz 200kHz 200kHz
Duty Cycle (Max) 100% 100% 100% 100% 100% 100% 100% 100%
Synchronous Rectifier Yes Yes Yes Yes Yes Yes Yes Yes
Clock Sync No No No No No No No No
Serial Interfaces - - - - - - - -
Control Features Enable, Frequency Control, Phase Control, Soft Start Enable, Phase Control Enable, Phase Control Enable, Frequency Control, Phase Control, Soft Start Phase Control Enable, Frequency Control, Phase Control, Soft Start Enable, Frequency Control, Phase Control, Soft Start Enable, Frequency Control, Phase Control, Soft Start
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) 0°C ~ 70°C (TA) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 16-VQFN Exposed Pad 16-VQFN Exposed Pad 16-VQFN Exposed Pad 16-VQFN Exposed Pad 16-VQFN Exposed Pad 16-VQFN Exposed Pad 16-VQFN Exposed Pad 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-QFN (5x5) 16-QFN (5x5) 16-QFN (5x5) 16-QFN (5x5) 16-QFN (4x4) 16-QFN (5x5) 16-QFN (5x5) 14-SOIC
