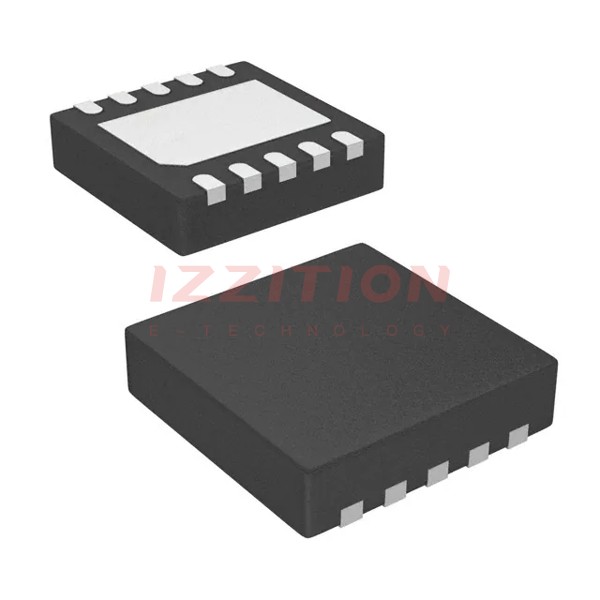

| Part Number | ISL6341CRZ | ISL6341IRZ | ISL6341ACRZ | ISL6341CCRZ | ISL6341CIRZ |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Obsolete | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14.4V | 4.5V ~ 14.4V | 4.5V ~ 14.4V | 4.5V ~ 14.4V | 4.5V ~ 14.4V |
| Frequency - Switching | 300kHz | 300kHz | 600kHz | 300kHz | 300kHz |
| Duty Cycle (Max) | 85% | 85% | 75% | 85% | 85% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Clock Sync | No | No | No | No | No |
| Serial Interfaces | - | - | - | - | - |
| Control Features | Enable, Phase Control, Power Good, Power on Reset | Enable, Phase Control, Power Good, Power on Reset | Enable, Phase Control, Power Good, Power on Reset | Enable, Phase Control, Power Good, Power on Reset | Enable, Phase Control, Power Good, Power on Reset |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN-EP (3x3) | 10-TDFN-EP (3x3) | 10-TDFN-EP (3x3) | 10-TDFN-EP (3x3) | 10-TDFN-EP (3x3) |
