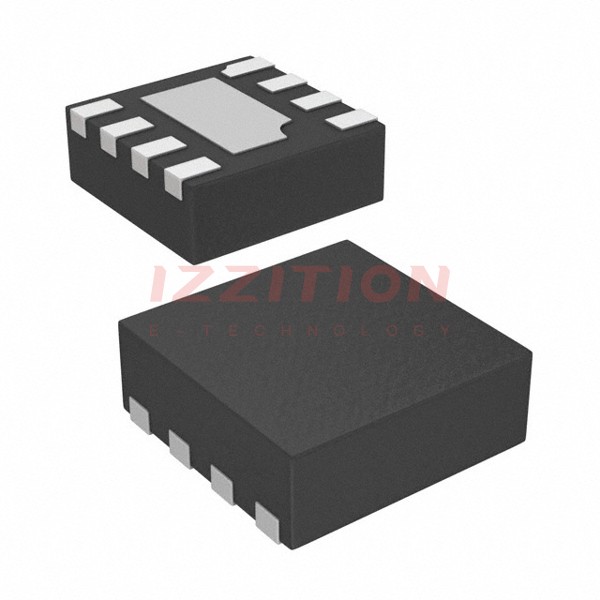

| Part Number | ISL54409IRTZ-T | ISL54409IRUZ-T | ISL54209IRTZ-T | ISL54405IRTZ-T | ISL54406IRTZ-T |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete | Active | Active |
| Applications | Audio, USB | Audio, USB | Audio, USB | Audio | Audio |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 2:1 | 2:1 | 1:1 |
| Switch Circuit | SPST | SPST | SPDT | SPDT | SPST |
| Number of Channels | 2 | 2 | 2 | 2 | 2 |
| On-State Resistance (Max) | 2.8Ohm | 2.8Ohm | 2.8Ohm (Audio), 6.5Ohm (USB) | 1.9Ohm | 2.8Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 5V | 2.7V ~ 5V | 2.5V ~ 5V | 3.3V, 5V | 2.7V ~ 5V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - |
| -3db Bandwidth | - | - | 736MHz | 230MHz | - |
| Features | Depop, USB 2.0 | Depop, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, Depop | Depop |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad | 10-UFQFN | 10-VFDFN Exposed Pad | 16-WFQFN Exposed Pad | 10-VFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN-EP (2x2) | 10-UTQFN (1.8x1.4) | 10-TDFN (3x3) | 16-TQFN (3x3) | 10-TDFN (3x3) |
