Please send RFQ , we will respond immediately.
| Part Number | ISL54233IRUZ-T7A | ISL54233IRTZ-T7A |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active |
| Switch Circuit | SP3T | SP3T |
| Multiplexer/Demultiplexer Circuit | 3:1 | 3:1 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 15Ohm | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | 70mOhm | 70mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 4.6V | 2.7V ~ 4.6V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | - | - |
| -3db Bandwidth | 1.6GHz | 1.6GHz |
| Charge Injection | - | - |
| Channel Capacitance (CS(off), CD(off)) | 3pF | 3pF |
| Current - Leakage (IS(off)) (Max) | 15nA | 15nA |
| Crosstalk | -36dB @ 240MHz | -36dB @ 240MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

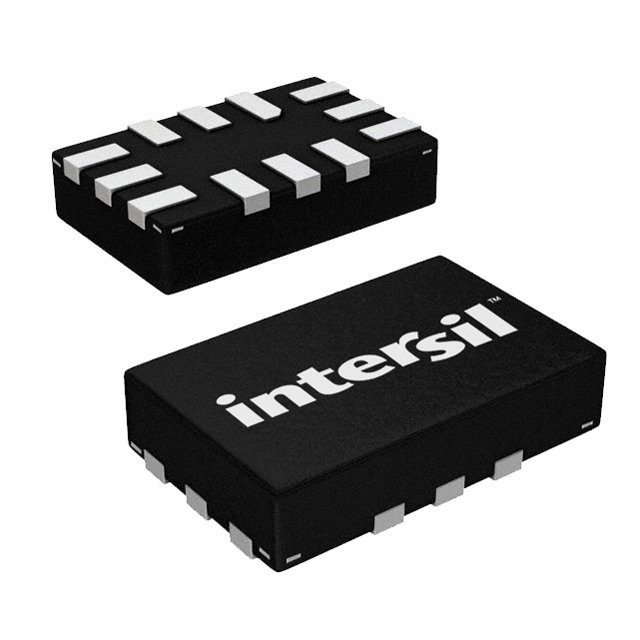

| Package / Case | 12-UFQFN | 12-WFQFN Exposed Pad |
| Supplier Device Package | 12-uTQFN (2.2x1.4) | 12-TQFN (3x3) |
