Please send RFQ , we will respond immediately.

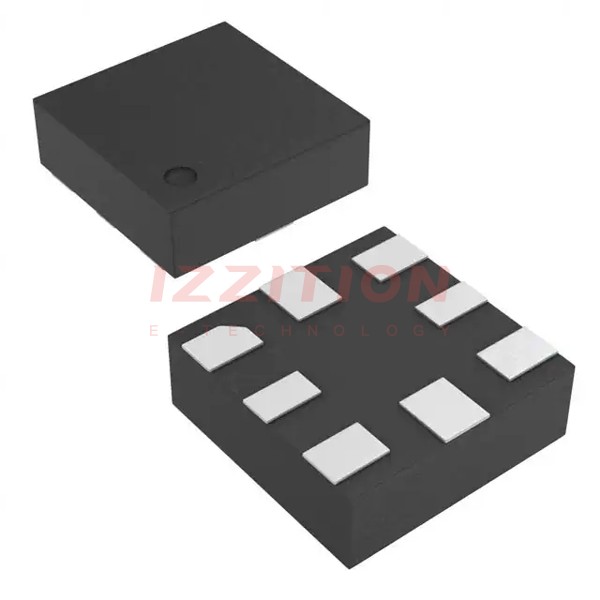

| Part Number | ISL54226IRUZ-T | ISL54227IRUZ-T | ISL54228IRUZ-T | ISL54206IRUZ-T | ISL54216IRUZ-T | ISL54220IRUZ-T | ISL54221IRUZ-T | ISL54224IRUZ-T | ISL54225IRUZ-T | ISL54226IRTZ-T |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Active | Active | Active | Active | Active |
| Applications | USB | USB | USB | Audio, USB | USB, UART | USB | USB | USB | USB | USB |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 2:1 | 3:1 | 2:1 | 2:1 | 2:1 | 2:1 | 2:1 |
| Switch Circuit | DPST | DPST | DPST | SPDT | SP3T | SPDT | SPDT | SPDT | SPDT | DPST |
| Number of Channels | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 1 |
| On-State Resistance (Max) | 17Ohm | 17Ohm | 17Ohm | 4Ohm (Audio), 5Ohm (USB) | 15Ohm | 8Ohm | 8Ohm | 20Ohm | 20Ohm | 17Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 1.8V ~ 5.5V | 2.7V ~ 4.6V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - | - | - | - | - |
| -3db Bandwidth | 790MHz | 790MHz | 790MHz | 630MHz | 800MHz | 742MHz | 742MHz | 780MHz | 780MHz | 790MHz |
| Features | USB 2.0 | USB 2.0 | USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | USB 2.0 |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-XFQFN | 10-UFQFN | 8-XFQFN | 10-UFQFN | 12-UFQFN | 10-UFQFN | 10-UFQFN | 10-UFQFN | 10-UFQFN | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-QFN (1.4x1.2) | 10-UTQFN (1.8x1.4) | 8-QFN (1.4x1.2) | 10-UTQFN (2.1x1.6) | 12-uTQFN (2.2x1.4) | 10-UTQFN (1.8x1.4) | 10-UTQFN (2.1x1.6) | 10-UTQFN (1.8x1.4) | 10-UTQFN (1.8x1.4) | 8-TDFN-EP (2x2) |
