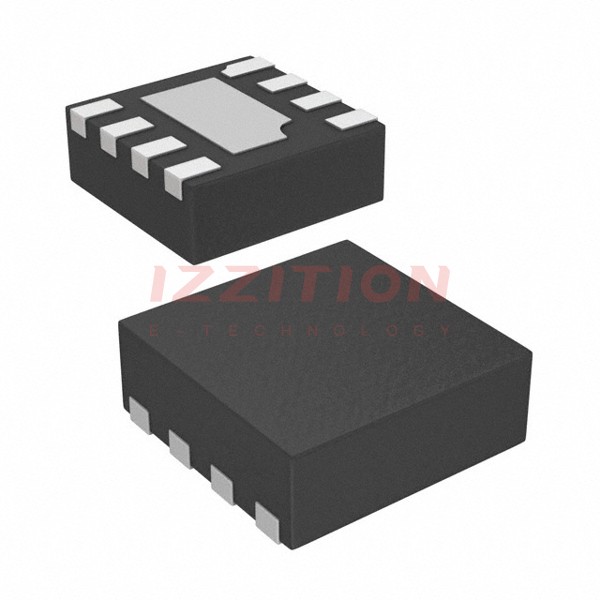

| Part Number | ISL54226IRTZ-T | ISL54227IRTZ-T | ISL54226IRUZ-T | ISL54228IRTZ-T | ISL54216IRTZ-T | ISL54220IRTZ-T | ISL54224IRTZ-T | ISL54225IRTZ-T |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Active | Active | Active |
| Applications | USB | USB | USB | USB | USB, UART | USB | USB | USB |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 2:1 | 3:1 | 2:1 | 2:1 | 2:1 |
| Switch Circuit | DPST | DPST | DPST | DPST | SP3T | SPDT | SPDT | SPDT |
| Number of Channels | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| On-State Resistance (Max) | 17Ohm | 17Ohm | 17Ohm | 17Ohm | 15Ohm | 8Ohm | 20Ohm | 20Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 4.6V | 2.7V ~ 5.5V | 2.7V ~ 5.25V | 2.7V ~ 5.25V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - | - | - |
| -3db Bandwidth | 790MHz | 790MHz | 790MHz | 790MHz | 800MHz | 742MHz | 780MHz | 780MHz |
| Features | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad | 10-VFDFN Exposed Pad | 8-XFQFN | 8-WFDFN Exposed Pad | 12-WFQFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN-EP (2x2) | 10-TDFN (3x3) | 8-QFN (1.4x1.2) | 8-TDFN-EP (2x2) | 12-TQFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) |
