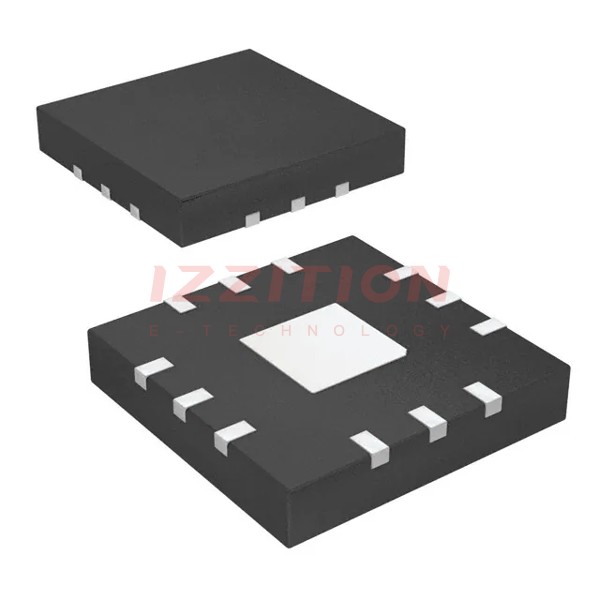

| Part Number | ISL54216IRTZ-T | ISL54226IRTZ-T | ISL54217IRTZ-T | ISL54216IRUZ-T | ISL54210IRTZ-T | ISL54211IRTZ-T | ISL54212IRTZ-T | ISL54213IRTZ-T | ISL54214IRTZ-T |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Obsolete | Obsolete | Active |
| Applications | USB, UART | USB | Audio, USB | USB, UART | Audio, USB | Audio, USB | Audio, USB | Audio, USB | Audio, USB |
| Multiplexer/Demultiplexer Circuit | 3:1 | 2:1 | 3:1 | 3:1 | 2:1 | 2:1 | 2:1 | 2:1 | 3:1 |
| Switch Circuit | SP3T | DPST | SP3T | SP3T | SPDT | SPDT | SPDT | SPDT | SP3T |
| Number of Channels | 2 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| On-State Resistance (Max) | 15Ohm | 17Ohm | 2.8Ohm (Audio), 8Ohm (USB) | 15Ohm | 2.8Ohm (Audio), 6Ohm (USB) | 2.8Ohm (Audio), 6Ohm (USB) | 4Ohm (Audio), 5Ohm (USB) | 2.8Ohm (Audio), 6.5Ohm (USB) | 2.8Ohm (Audio), 8Ohm (USB) |
| Voltage - Supply, Single (V+) | 2.7V ~ 4.6V | 2.7V ~ 5.25V | 2.7V ~ 4.6V | 2.7V ~ 4.6V | 2.7V ~ 3.6V | 2.7V ~ 5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.7V ~ 4.6V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - | - | - | - |
| -3db Bandwidth | 800MHz | 790MHz | 700MHz | 800MHz | 700MHz | 700MHz | 630MHz | 736MHz | 700MHz |
| Features | Break-Before-Make, USB 2.0 | USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | Depop, USB 2.0 | Depop, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 | Break-Before-Make, USB 2.0 |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-WFQFN Exposed Pad | 8-WFDFN Exposed Pad | 12-WFQFN Exposed Pad | 12-UFQFN | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 12-WFQFN Exposed Pad |
| Supplier Device Package | 12-TQFN (3x3) | 8-TDFN-EP (2x2) | 12-TQFN (3x3) | 12-uTQFN (2.2x1.4) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 12-TQFN (3x3) |
