Please send RFQ , we will respond immediately.

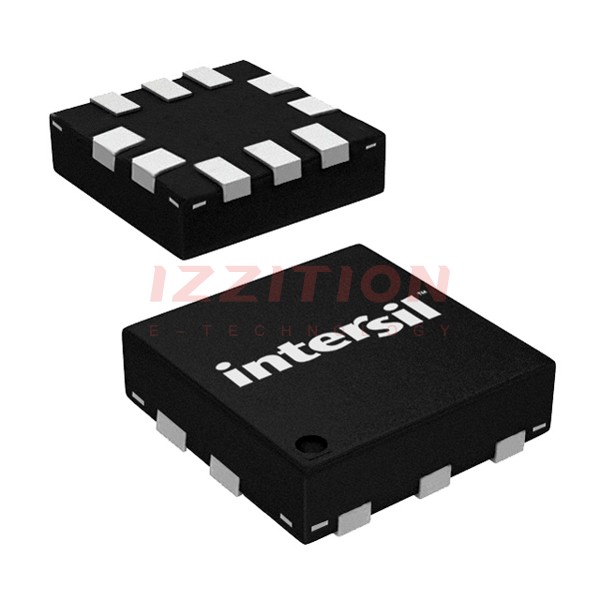

| Part Number | ISL54066IRUZ-T | ISL54056IRUZ-T | ISL54060IRUZ-T | ISL54061IRUZ-T | ISL54062IRUZ-T | ISL54063IRUZ-T | ISL54064IRUZ-T | ISL54065IRUZ-T | ISL54066IRTZ-T |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Active | Active | Obsolete | Active | Active | Obsolete | Obsolete |
| Switch Circuit | SPST - NO | SPDT | SPST - NO | SPST - NC | SPDT | SPST - NO | SPST - NC | SPDT | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 2:1 | 1:1 | 1:1 | 2:1 | 1:1 | 1:1 | 2:1 | 1:1 |
| Number of Circuits | 2 | 4 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| On-State Resistance (Max) | 1Ohm | 550mOhm | 520mOhm (Typ) | 520mOhm (Typ) | 550mOhm (Typ) | 550mOhm (Typ) | 550mOhm (Typ) | 520mOhm (Typ) | 1Ohm |
| Channel-to-Channel Matching (ΔRon) | 5mOhm | 50mOhm | 10mOhm | 10mOhm | 15mOhm | 15mOhm | 15mOhm | 10mOhm | 5mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 6.5V | 1.65V ~ 4.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 39ns, 27ns | 33ns, 16ns | 35ns, 10ns | 35ns, 10ns | 35ns, 16ns | 35ns, 10ns | 35ns, 10ns | 35ns, 16ns | 39ns, 27ns |
| -3db Bandwidth | 30MHz | - | 60MHz | 60MHz | 60MHz | 60MHz | 60MHz | 60MHz | 30MHz |
| Charge Injection | 170pC | 248pC | 170pC | 170pC | 170pC | 170pC | 170pC | 170pC | 170pC |
| Channel Capacitance (CS(off), CD(off)) | 33pF | 38pF | 36pF | 36pF | 36pF | 36pF | 36pF | 36pF | 33pF |
| Current - Leakage (IS(off)) (Max) | - | 70nA | 8.13nA | 8.13nA | - | - | - | 8.13nA | - |
| Crosstalk | -80dB @ 1MHz | -85dB @ 100kHz | -75dB @ 1MHz | -75dB @ 1MHz | -75dB @ 1MHz | -75dB @ 1MHz | -75dB @ 1MHz | -75dB @ 1MHz | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-UFQFN | 16-UFQFN | 10-UFQFN | 10-UFQFN | 10-UFQFN | 10-UFQFN | 10-UFQFN | 12-UFQFN | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-UTQFN (1.8x1.4) | 16-UTQFN (2.6x1.8) | 10-UTQFN (1.8x1.4) | 10-UTQFN (1.8x1.4) | 10-UTQFN (1.8x1.4) | 10-UTQFN (1.8x1.4) | 10-UTQFN (1.8x1.4) | 12-uTQFN (2.2x1.4) | 10-TDFN (3x3) |
