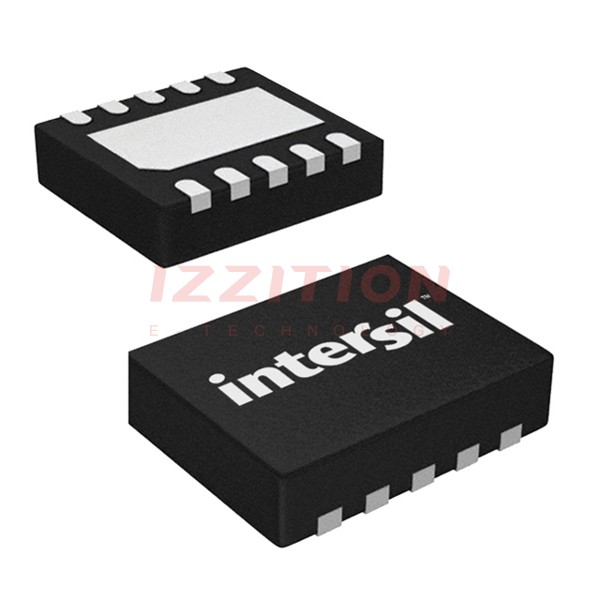

| Part Number | ISL54060IRTZ-T | ISL54060IRUZ-T | ISL54061IRTZ-T | ISL54062IRTZ-T | ISL54063IRTZ-T | ISL54064IRTZ-T | ISL54066IRTZ-T |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NC | SPDT | SPST - NO | SPST - NC | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 2:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| On-State Resistance (Max) | 520mOhm (Typ) | 520mOhm (Typ) | 520mOhm (Typ) | 550mOhm (Typ) | 550mOhm (Typ) | 550mOhm (Typ) | 1Ohm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm | 10mOhm | 10mOhm | 15mOhm | 15mOhm | 15mOhm | 5mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 6.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 10ns | 35ns, 10ns | 35ns, 10ns | 35ns, 16ns | 35ns, 10ns | 35ns, 10ns | 39ns, 27ns |
| -3db Bandwidth | 60MHz | 60MHz | 60MHz | 60MHz | 60MHz | 60MHz | 30MHz |
| Charge Injection | 170pC | 170pC | 170pC | 170pC | 170pC | 170pC | 170pC |
| Channel Capacitance (CS(off), CD(off)) | 36pF | 36pF | 36pF | 36pF | 36pF | 36pF | 33pF |
| Current - Leakage (IS(off)) (Max) | 8.13nA | 8.13nA | 8.13nA | - | - | - | - |
| Crosstalk | -75dB @ 1MHz | -75dB @ 1MHz | -75dB @ 1MHz | -75dB @ 1MHz | -75dB @ 1MHz | -75dB @ 1MHz | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad | 10-UFQFN | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x3) | 10-UTQFN (1.8x1.4) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) |
