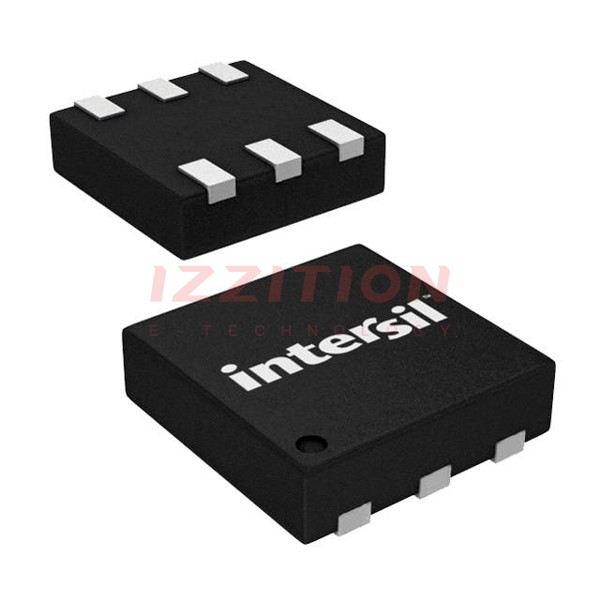

| Part Number | ISL54053IRUZ-T | ISL54054IRUZ-T | ISL54056IRUZ-T | ISL54059IRUZ-T | ISL54063IRUZ-T | ISL54058IRUZ-T | ISL54055IRUZ-T | ISL54057IRUZ-T | ISL54050IRUZ-T | ISL54051IRUZ-T | ISL54052IRUZ-T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Intersil | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active | Active | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Switch Circuit | SPDT | SPST - NO | SPDT | SPDT | SPST - NO | SP4T | SPST - NC | SP4T | SPDT | SPST - NO | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 2:1 | 1:1 | 2:1 | 2:1 | 1:1 | 4:1 | 1:1 | 4:1 | 2:1 | 1:1 | 1:1 |
| Number of Circuits | 1 | 1 | 4 | 2 | 2 | 2 | 1 | 1 | 2 | 1 | 1 |
| On-State Resistance (Max) | 860mOhm (Typ) | 360mOhm (Typ) | 550mOhm | 520mOhm (Typ) | 550mOhm (Typ) | 750mOhm | 360mOhm (Typ) | 750mOhm | 500mOhm | 860mOhm (Typ) | 860mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 4mOhm | - | 50mOhm | 10mOhm | 15mOhm | 90mOhm | - | 90mOhm | 60mOhm | - | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.65V ~ 4.5V | 1.8V ~ 6.5V | 1.8V ~ 6.5V | 1.6V ~ 3.6V | 1.8V ~ 5.5V | 1.6V ~ 3.6V | 1.65V ~ 4.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 24ns, 10ns | 12ns, 12ns | 33ns, 16ns | 35ns, 16ns | 35ns, 10ns | - | 12ns, 12ns | 27ns, 18ns | 40ns, 20ns | 24ns, 10ns | 24ns, 10ns |
| -3db Bandwidth | 190MHz | 72MHz | - | 60MHz | 60MHz | - | 72MHz | - | - | 190MHz | 190MHz |
| Charge Injection | 26pC | 71pC | 248pC | 170pC | 170pC | - | 71pC | - | 170pC | 26pC | 26pC |
| Channel Capacitance (CS(off), CD(off)) | 16pF | 30pF | 38pF | 36pF | 36pF | 44pF | 30pF | 44pF, 149pF | 62pF | 16pF | 16pF |
| Current - Leakage (IS(off)) (Max) | 10nA | 10nA | 70nA | 8.13nA | - | 4nA | 10nA | 4nA | 100nA | 10nA | 10nA |
| Crosstalk | -83dB @ 100kHz | - | -85dB @ 100kHz | -75dB @ 1MHz | -75dB @ 1MHz | -100dB @ 100kHz | - | -100dB @ 100kHz | -85dB @ 100kHz | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-UFDFN | 6-UFDFN | 16-UFQFN | 10-UFQFN | 10-UFQFN | 16-UFQFN | 6-UFDFN | 16-UFQFN | 10-UFQFN | 6-UFDFN | 6-UFDFN |
| Supplier Device Package | 6-UTDFN (1.2x1) | 6-UTDFN (1.2x1) | 16-UTQFN (2.6x1.8) | 10-UTQFN (1.8x1.4) | 10-UTQFN (1.8x1.4) | 16-UTQFN (2.6x1.8) | 6-UTDFN (1.2x1) | 16-UTQFN (2.6x1.8) | 10-UTQFN (1.8x1.4) | 6-UTDFN (1.2x1) | 6-UTDFN (1.2x1) |
