Please send RFQ , we will respond immediately.

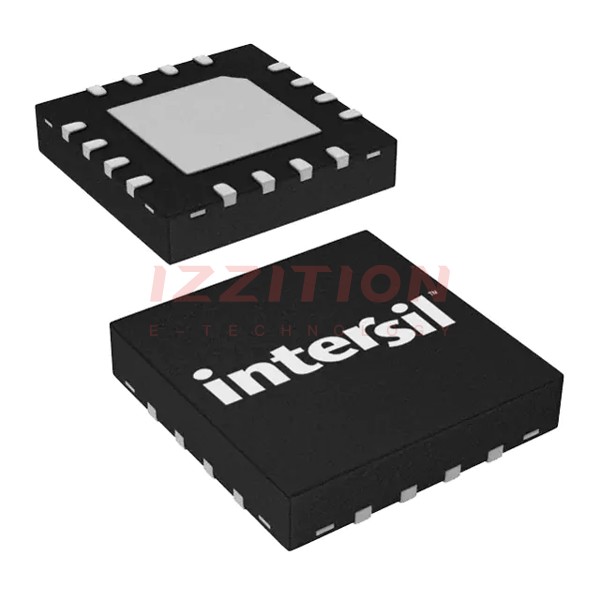

| Part Number | ISL43640IR | ISL43640IRZ | ISL43840IR | ISL43640IU | ISL43140IR | ISL43240IR |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Intersil | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SP4T | SP4T | SP4T | SP4T | SPST - NC | SPDT |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 | 4:1 | 4:1 | 1:1 | 2:1 |
| Number of Circuits | 1 | 1 | 2 | 1 | 4 | 4 |
| On-State Resistance (Max) | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 65Ohm | 25Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm | 500mOhm | 1.3Ohm | 500mOhm | 2Ohm | 500mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V | 2.7V ~ 12V | 2.7V ~ 12V | 2.7V ~ 12V | 2.7V ~ 12V | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | - | - | ±2V ~ 6V | - | ±2.6V ~ 6V | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 30ns, 28ns | 30ns, 28ns | 50ns, 35ns | 30ns, 28ns | 80ns, 30ns | 65ns, 50ns |
| -3db Bandwidth | - | - | - | - | - | - |
| Charge Injection | 1.2pC | 1.2pC | 0.3pC | 1.2pC | 1pC | 5pC (Max) |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 11pF | 4pF, 11pF | 3pF, 12pF | 4pF, 11pF | 7pF, 7pF | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA | 100pA | 1nA | 1nA | 200pA |
| Crosstalk | - | - | -105dB @ 100kHz | - | -90dB @ 100kHz | -92dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 16-VFQFN Exposed Pad | 20-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | 20-QFN (4x4) | 10-MSOP | 16-QFN (3x3) | 20-QFN (4x4) |
