Please send RFQ , we will respond immediately.

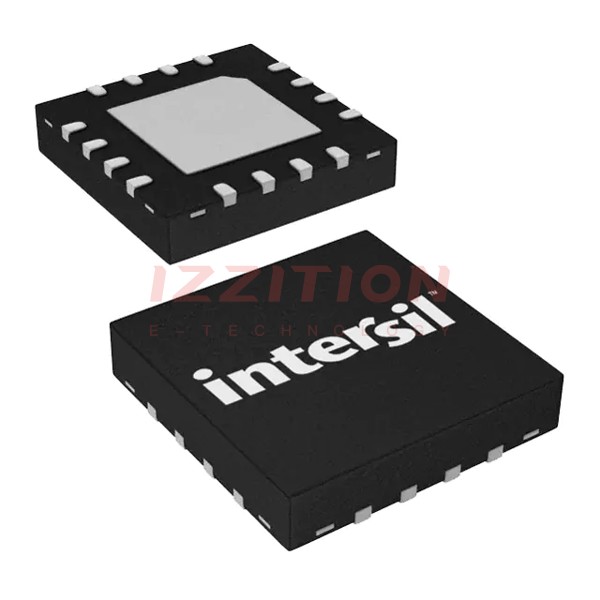

| Part Number | ISL43410IRZ | ISL43410IUZ | ISL43L410IRZ | ISL43410IR |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Circuit | DPDT | DPDT | DPDT | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 | 2:2 | 2:2 | 2:2 |
| Number of Circuits | 1 | 1 | 1 | 1 |
| On-State Resistance (Max) | 50Ohm | 50Ohm | 400mOhm | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm | 500mOhm | 30mOhm | 500mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V | 2.7V ~ 12V | 1.65V ~ 3.6V | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 24ns (Typ) | 25ns, 24ns (Typ) | 20ns, 12ns | 25ns, 24ns (Typ) |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | 1.2pC | 1.2pC | 95pC | 1.2pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 6pF | 4pF, 6pF | 115pF | 4pF, 6pF |
| Current - Leakage (IS(off)) (Max) | 3nA | 3nA | 2nA | 3nA |
| Crosstalk | -85dB @ 1MHz | -85dB @ 1MHz | -95dB @ 100kHz | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-VFDFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 10-MSOP | 10-TDFN (3x3) | 16-QFN (3x3) |
