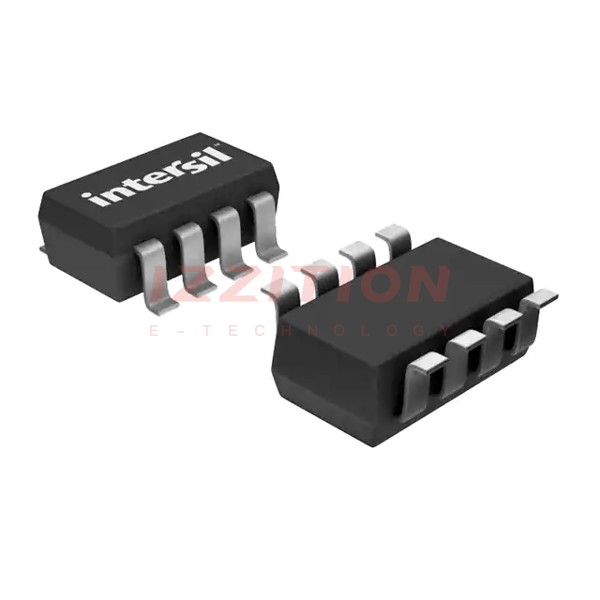

| Part Number | ISL43120IHZ-T | ISL43110IHZ-T |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 |
| Number of Circuits | 2 | 1 |
| On-State Resistance (Max) | 20Ohm | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm | - |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V | 2.4V ~ 12V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 30ns | 80ns, 50ns |
| -3db Bandwidth | - | - |
| Charge Injection | 5pC | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF | 15pF, 15pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 1nA |
| Crosstalk | -105dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SOT-23-8 | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-8 | 5-SOT |
