| Part Number | ISL23425TFRUZ-T7A | ISL23425UFRUZ-T7A | ISL23425WFRUZ-T7A | ISL23428TFRUZ-T7A | ISL23325TFRUZ-T7A | ISL23415TFRUZ-T7A |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Active | Active |
| Taper | Linear | Linear | Linear | Linear | Linear | Linear |
| Configuration | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 | 1 |
| Number of Taps | 256 | 256 | 256 | 128 | 256 | 256 |
| Resistance (Ohms) | 100k | 50k | 10k | 100k | 100k | 100k |
| Interface | SPI | SPI | SPI | SPI | I²C | SPI |
| Memory Type | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile |
| Voltage - Supply | 1.2V ~ 5.5V, 1.7V ~ 5.5V | 1.2V ~ 5.5V, 1.7V ~ 5.5V | 1.2V ~ 5.5V, 1.7V ~ 5.5V | 1.2V ~ 5.5V, 1.7V ~ 5.5V | 1.2V ~ 5.5V, 1.7V ~ 5.5V | 1.2V ~ 5.5V, 1.7V ~ 5.5V |
| Features | - | - | - | - | Selectable Address | - |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient (Typ) | 45ppm/°C | 65ppm/°C | 125ppm/°C | 45ppm/°C | 45ppm/°C | 70ppm/°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

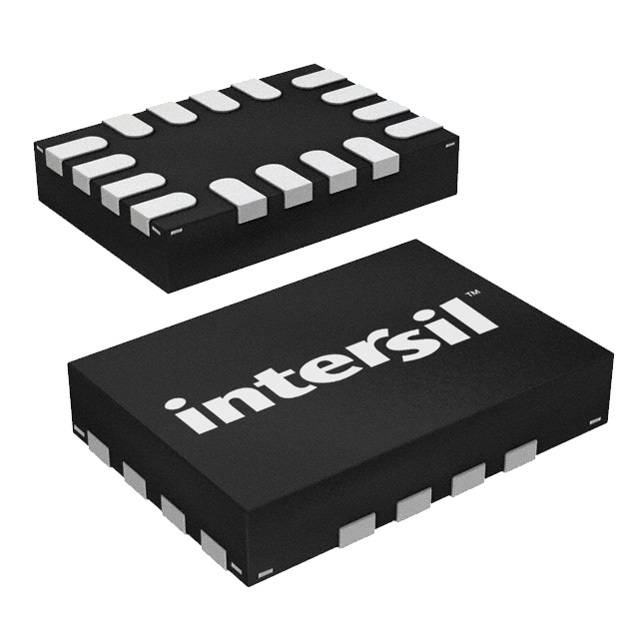

| Supplier Device Package | 16-UTQFN (2.6x1.8) | 16-UTQFN (2.6x1.8) | 16-UTQFN (2.6x1.8) | 16-UTQFN (2.6x1.8) | 16-UTQFN (2.6x1.8) | 10-UTQFN (2.1x1.6) |
| Package / Case | 16-UFQFN | 16-UFQFN | 16-UFQFN | 16-UFQFN | 16-UFQFN | 10-UFQFN |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Resistance - Wiper (Ohms) (Typ) | 70 | 70 | 70 | 70 | 70 | 70 |
