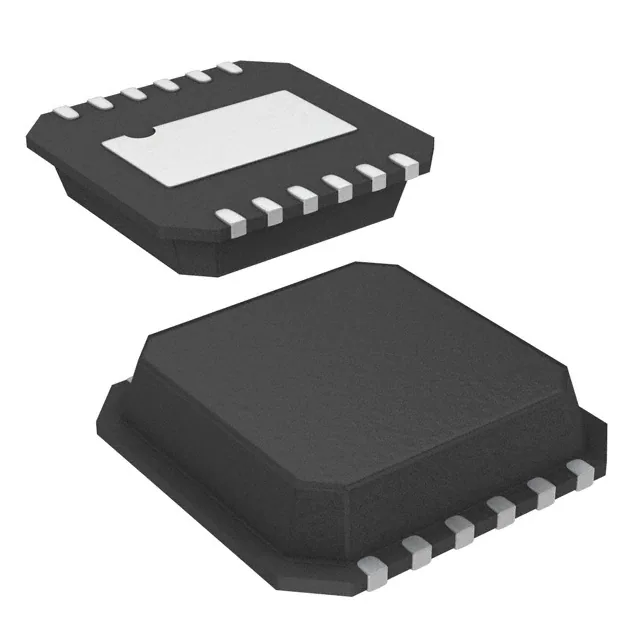

| Part Number | ISL2111AR4Z-T | ISL2111ARTZ-T | ISL2111BR4Z-T | ISL2110AR4Z-T |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 14V | 8V ~ 14V | 8V ~ 14V | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 1.4V, 2.2V | 1.4V, 2.2V | 1.4V, 2.2V | 3.7V, 7.4V |
| Current - Peak Output (Source, Sink) | 3A, 4A | 3A, 4A | 3A, 4A | 3A, 4A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 114 V | 114 V | 114 V | 114 V |
| Rise / Fall Time (Typ) | 9ns, 7.5ns | 9ns, 7.5ns | 9ns, 7.5ns | 9ns, 7.5ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-VFDFN Exposed Pad | 10-WDFN Exposed Pad | 8-VDFN Exposed Pad | 12-VFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (4x4) | 10-TDFN (4x4) | 8-DFN (4x4) | 12-DFN (4x4) |
