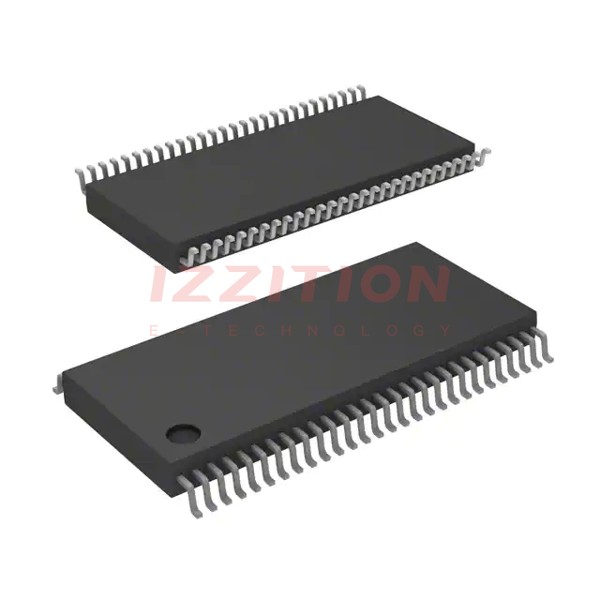

| Part Number | ICS954204AGLF | ICS954204AGLFT | ICS954204BGLF | ICS954203AGLF |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| PLL | Yes | Yes | Yes | No |
| Main Purpose | Intel CPU-M, Intel CPU, PCI Express (PCIe), Timing Control Hub™ | Intel CPU-M, Intel CPU, PCI Express (PCIe), Timing Control Hub™ | Intel CPU-M, Intel CPU, PCI Express (PCIe), Timing Control Hub™ | Intel CPU, PCI Express (PCIe) |
| Input | Crystal | Crystal | Crystal | - |
| Output | Clock | Clock | Clock | Clock |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:18 | 1:18 | 1:18 | - |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes | - |
| Frequency - Max | 400MHz | 400MHz | 400MHz | 400MHz |
| Voltage - Supply | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.3V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 56-TSSOP | 56-TSSOP | 56-TSSOP | 48-TSSOP |
