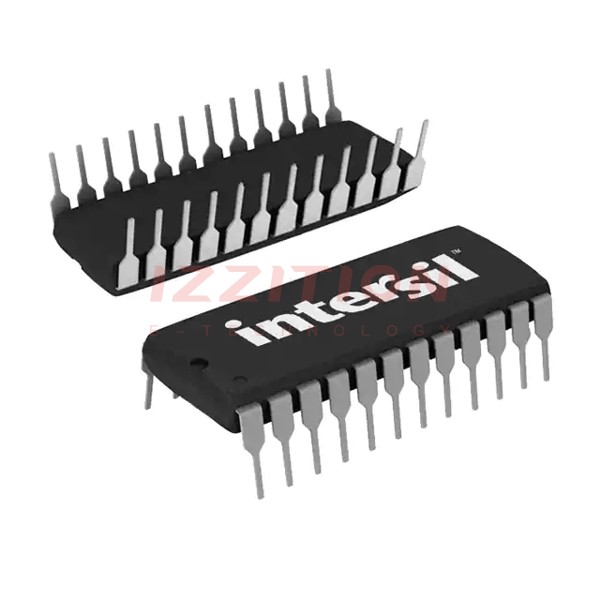

| Part Number | HIP4086APZ | HIP4083APZ | HIP4086ABZ | HIP4086AP |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc | Intersil |
| Product Status | Active | Obsolete | Active | Obsolete |
| Driven Configuration | Half-Bridge | High-Side | Half-Bridge | Half-Bridge |
| Channel Type | 3-Phase | 3-Phase | 3-Phase | 3-Phase |
| Number of Drivers | 6 | 3 | 6 | 6 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 7V ~ 15V | 7V ~ 15V | 7V ~ 15V | 7V ~ 15V |
| Logic Voltage - VIL, VIH | 1V, 2.5V | 1V, 2.5V | 1V, 2.5V | 1V, 2.5V |
| Current - Peak Output (Source, Sink) | 500mA, 500mA | - | 500mA, 500mA | 500mA, 500mA |
| Input Type | Inverting, Non-Inverting | Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 95 V | 95 V | 95 V | 95 V |
| Rise / Fall Time (Typ) | 20ns, 10ns | 35ns, 30ns | 20ns, 10ns | 20ns, 10ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | 24-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP | 16-PDIP | 24-SOIC | 24-PDIP |
