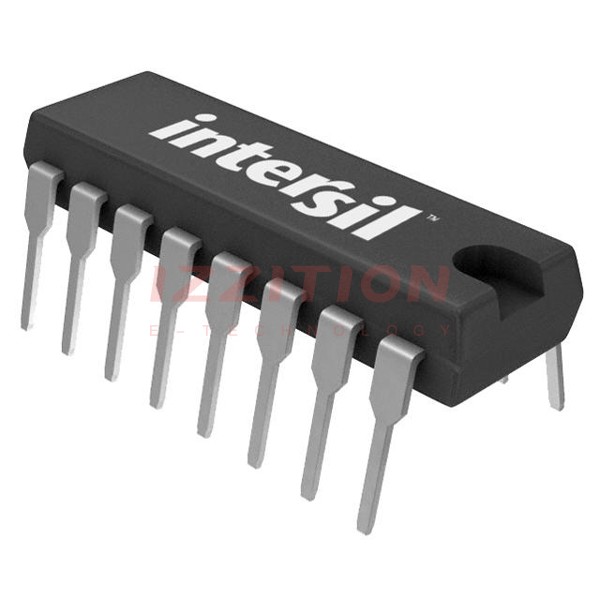

| Part Number | HIP4082IPZ | HIP4082IBZ | HIP4082IP |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Active | Active | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent |
| Number of Drivers | 4 | 4 | 4 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 8.5V ~ 15V | 8.5V ~ 15V | 8.5V ~ 15V |
| Logic Voltage - VIL, VIH | 1V, 2.5V | 1V, 2.5V | 1V, 2.5V |
| Current - Peak Output (Source, Sink) | 1.4A, 1.3A | 1.4A, 1.3A | 1.4A, 1.3A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 95 V | 95 V | 95 V |
| Rise / Fall Time (Typ) | 9ns, 9ns | 9ns, 9ns | 9ns, 9ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP | 16-SOIC | 16-PDIP |
